1-5 Layers Multi Decks Circular Vibrating Sieve Shaker Screen for Pebbles Screening
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
| Certification: | ISO9001:2008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,500.00/sets >=1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container. <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month vibrating sieve shaker screener |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Pump | Condition: | New |
| Type: | Circular | Application: | Ore, Stone, Sand, Glass, Mulch, Organics, Topsoil, Bark |
| Voltage: | 380V/415V/440V | Dimension(L*W*H): | As Per Different Model |
| Weight: | 1400-12000KG | Warranty: | 2 Years |
| Product Name: | Circular Vibrating Sieve Screen For Pebbles Screening Classifier | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training |
| Installation: | Supply Manual To Guide User | Capacity: | 10-700 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | 4-80mm |

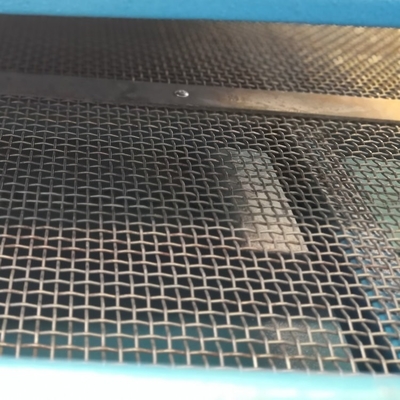

| Screen Deck Number: | 1-5 Layers | Mesh Material: | Manganese Wire Woven Or Stainless Steel Wire Woven |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | Local Service Location: | None |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai, Guangzhou( As Client Request) | ||
Product Description

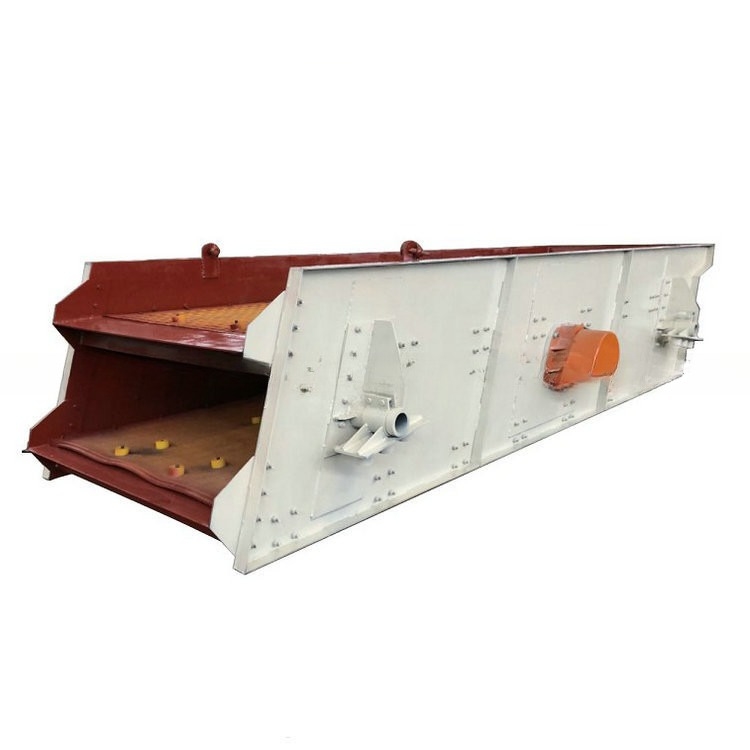

Circular vibrating sieve introduction:
YK Series circular vibrating sieve can be used to separate minerals into various sizes for further processing in crusher. It incorporates a vibrator, eccentric block, mesh, spring, triangular belt and motor and is used for discharging bulky goods, sand, gravel, coal and coke from hopper to crusher. We can design and supply all ranges of vibrating screens according to the capacity and requirement.
Circular vibrating sieve working principle:
Circular vibrating sieve mainly consists of the eccentric block vibrator, screen box, motor, and supportive device. Through the flexible coupling, the motor drives the eccentric block of the vibrator rotate at high speed, generating the centrifugal force, and then causing the screen box do circular movement by the amplitude. After that, the materials in the slope screen surface will be cast continuously by the force generated from the screen box, then realizes the purpose of classifying.
Circular vibrating screen specifications:
| Model | screen deck | installation slope(°) | screen size(mm) | feeding size(mm) | capacity (t/h) | motor power (kw) | weight (kg) |
| YK1230 | 1 | 15 | 4-50 | ≤300 | 10-75 | 5.5 | 1468 |
| 2YK1230 | 2 | 15 | 4-50 | ≤300 | 13-78 | 5.5 | 2253 |
| 3YK1230 | 2 | 15 | 4-50 | ≤300 | 15-80 | 7.5 | 2978 |
| 4YK1230 | 3 | 15 | 4-50 | ≤300 | 17-90 | 7.5 | 3982 |
| YK1235 | 1 | 15 | 4-50 | ≤300 | 20-150 | 5.5 | 1729 |
| 2YK1235 | 2 | 15 | 4-50 | ≤300 | 20-150 | 5.5 | 2474 |
| 3YK1235 | 2 | 15 | 4-50 | ≤300 | 22-150 | 7.5 | 3158 |
| 4YK1235 | 4 | 15 | 4-50 | ≤300 | 22-150 | 7.5 | 4160 |
| 2YK1545 | 2 | 20 | 5-50 | ≤300 | 22-150 | 11 | 5308 |
| 3YK1545 | 3 | 20 | 5-50 | ≤300 | 50-180 | 15 | 5915 |
| 4YK1545 | 4 | 20 | 5-50 | ≤300 | 50-180 | 15 | 7126 |
| 2YK1554 | 2 | 20 | 5-50 | ≤300 | 50-200 | 15 | 5284 |
| 3YK1554 | 3 | 20 | 5-50 | ≤300 | 56-200 | 15 | 6186 |
| 4YK1554 | 4 | 20 | 5-50 | ≤300 | 56-250 | 18.5 | 7284 |
| 2YK1854 | 2 | 20 | 5-80 | ≤300 | 56-300 | 18.5 | 5826 |
| 3YK1854 | 3 | 20 | 5-80 | ≤300 | 60-400 | 18.5 | 7368 |
| 4YK1854 | 4 | 20 | 5-80 | ≤300 | 80-400 | 22 | 8281 |
| 2YK1860 | 2 | 20 | 5-80 | ≤300 | 60-400 | 22 | 6195 |
| 3YK1860 | 3 | 20 | 5-80 | ≤300 | 80-400 | 22 | 7613 |
| 4YK1860 | 4 | 20 | 5-80 | ≤300 | 90-500 | 30 | 8650 |
| 2YK2160 | 2 | 20 | 5-80 | ≤300 | 100-720 | 22 | 6856 |
| 3YK2160 | 3 | 20 | 5-80 | ≤300 | 100-720 | 30 | 9112 |
| 4YK2160 | 4 | 20 | 5-80 | ≤300 | 100-720 | 30 | 10405 |
1. Pre-sale service:
1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.
3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.
Zhengzhou Sinolion Machinery Co., Ltd. is a high-tech company which professional manufacturing the production of briquette equipment, building material equipment and mining machinery.
After 30 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. SINOLION has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments, SINOLION has continuously improved product values and performance. Now, 10,000-300,000 tons briquette production lines are renowned in domestic and foreign markets, and SINOLION products have been exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt and other countries and regions. It is ideal equipment for briquetting mine power in the world market.
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
