Rotary Garbage Sorting Drum Screen for Garbage Recycling Improves Waste Management Process
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,200.00 - $30,000.00/sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Canada, United States, Germany, Philippines, Brazil, Mexico, Russia, Argentina, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 98% | Voltage: | 380V/415V/440V( As Client Request) |
| Dimension(L*W*H): | As Per Different Model | Weight: | 2200 KG, 6.5-10T |
| Warranty: | 24 Months Excluding Spare Parts | Marketing Type: | New Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Key Selling Points: | Mobile Gold Washing Trommel | Product Name: | Efficient Rotary Garbage Sorting Drum Screen For Garbage Recycling |
| Model: | Domestic Garbage Screening Equipment | Power: | 5.5KW, 7.5KW, 11KW |
| Dimension: | Depends On Model | Application: | Alluvial Gold Washing, Diamond, Rock, Soil, River Gold |
| Capacity: | 30-150 Tons Per Hour | Feeding Size: | Less Than 300mm |
| Discharge Size: | Less Than 6mm | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
Efficient Rotary Garbage Sorting Drum Screen for Garbage Recycling
A trommel is mining equipment comprising of a cylindrical drum that has many holes of a given size. There is a mechanical solution to separating out the waste and categorize them; these machines are called Trommels. They are heavy-duty screening machines widely used in the waste processing industry and MSW plants to separate the different types of waste.

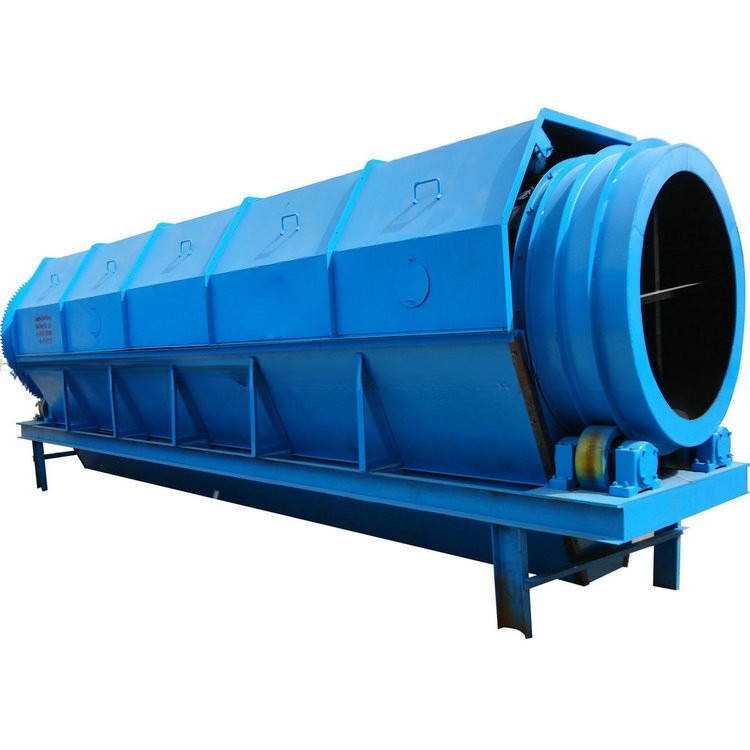

A trommel screen consists of a cylindrical drum that has many different size holes on its surface and works in a circular motion. As the drum rotates, the screen allows a particular size of waste to be separated out forming a pile eg manure while the waste that is bigger than the size of the hole is retained at the back of the cylinder.
However, the machine requires some manpower for smooth operation, it is easy to use and operation safe. It is even possible to operate a trommel for both dry and wet waste. They are highly effective machines which play an important role in our Zero Waste Mission as waste recycling and waste reuse is only possible once the waste is correctly separated.
At the manual sorting platform, bulky materials will be sorted out.
And then in the magnetic separation machine, iron matters will be sorted out. The rest will be sent to a rotating screening machine to be sorted according to diameters.
Generally, the rotating screening machine can separate wastes below or above 50 mm. But in fact, the bore diameter of the screening machine can be adjusted based on actual needs.
Wastes below 50 mm, called undersized matters, are mostly organics that can be shipped out and used as fertilizer after picking out iron matters through the magnetic separator. Oversized wastes above 50 mm will be sent to the magnetic separation again to separate materials like irony drink cans or packing tins and then go to the eddy separator to sort non-ferrous matters out.
A comprehensive winnowing machine can sort the wastes into the following types, light plastic waste; heavy materials (e.g. bricks and stones, rubber overshoes, ceramic chips, glasses, etc);and other materials like hard plastic, textile fabrics, rubber products, and wet papers, etc.
The last ring of the process is manual sorting again. light plastic will be sent to the packing machine after sundries being sorted. Usable parts from heavy materials will be sorted out for further treatment and the rest will be transported out for landfill or receive focus utilization.Usable parts from other materials will also be sorted out for further treatment likewise. Hard plastic, textile fabrics, rubber products, and organics can be sold out after being pressed and packed.
As for the combustible wastes, they are usually transported out after pressing and packing and then used to generate electricity or for landfill. Thereinto, a bag breaker can be equipped before the magnetic separator to break the bags inside of the wastes.
| Model | Drum size(m) | Drum inclination (°) | Drum speed (r/min) | Mesh size(mm) | Max feeding size(mm) | capacity(m³/h) | Motor power (kw) |
| GTS820 | Φ0.8×2 | 6-10 | 32 | 2-20 | Mesh size×2.5 | 7-30 | 3 |
| GTS830 | Φ0.83 | 6-10 | 32 | 2-20 | Mesh size×2.5 | 8-50 | 3 |
| GTS1020 | Φ1×2 | 6-10 | 25 | 2-20 | Mesh size×2.5 | 10-60 | 4 |
| GTS1030 | Φ1×3 | 6-10 | 25 | 2-20 | Mesh size×2.5 | 11-80 | 4 |
| GTS1230 | Φ1.2×2 | 6-10 | 20 | 2-20 | Mesh size×2.5 | 12-100 | 5.5 |
| GTS1240 | Φ1.2×4 | 6-10 | 20 | 2-20 | Mesh size×2.5 | 14-120 | 5.5 |
| GTS1530 | Φ1.5×3 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 16-120 | 5.5 |
| GTS1540 | Φ1.5×4 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 18-150 | 7.5 |
| GTS1550 | Φ1.5×5 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 20-180 | 11 |
| GTS1560 | Φ1.5×6 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 22-200 | 11 |
| GTS1850 | Φ1.8×5 | 6-10 | 14 | 2-20 | Mesh size×2.5 | 24-220 | 15 |
| GTS1860 | Φ1.8×6 | 6-10 | 14 | 2-20 | Mesh size×2.5 | 26-240 | 15 |
| GTS2050 | Φ2×5 | 6-10 | 12 | 2-20 | Mesh size×2.5 | 50-600 | 22 |
| GTS2080 | Φ2×8 | 6-10 | 12 | 2-20 | Mesh size×2.5 | 80-700 | 22 |
| GTS2260 | Φ2.2×6 | 6-10 | 10 | 2-20 | Mesh size×2.5 | 100-800 | 30 |
| GTS2280 | Φ2.2×8 | 6-10 | 10 | 2-20 | Mesh size×2.5 | 120-850 | 30 |
if you need more photos and video , please click here to contact me :
if you need more photos and video , please click here to contact me :
Question 1: Can you give me a solution and quotation?
Answer: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
Question 2: Way of payment
Answer: Welcome clients place the order by alibaba online one-touch! Deya also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.
Question 3: What’s the delivery time after I pay the deposit ?
Answer: Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
Question 5: How long of your machine quality guarantee terms?
Answer: Equipment from Zhengzhou Sinolion Machinery Co., Ltd. with 18 months warranty, can be extended to 24 months as request.
If you have interest on our machine or have questions on our machine, please don't hesitate to contact us.
