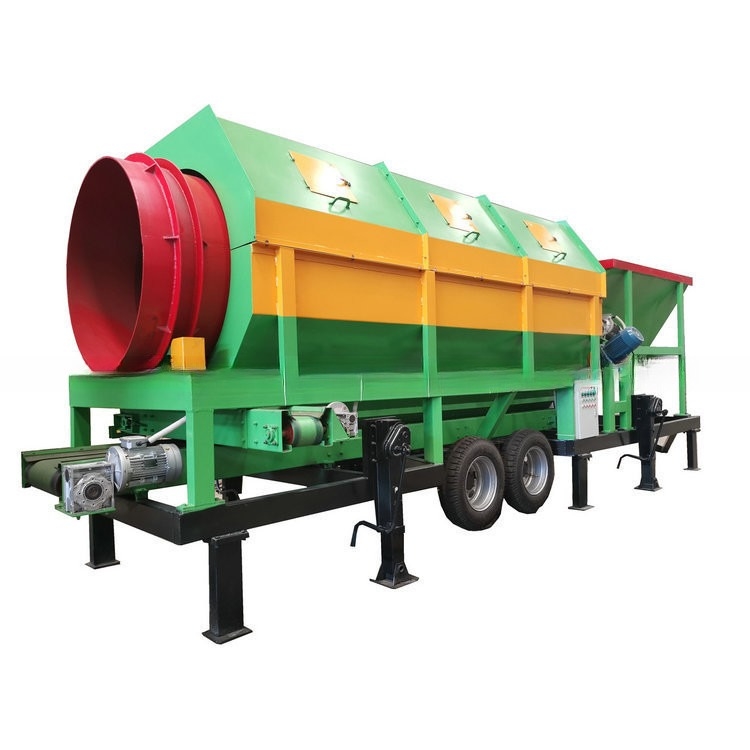

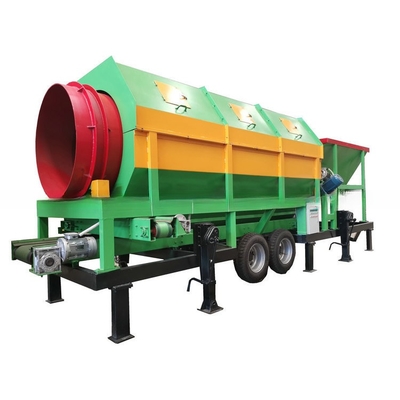

High Capacity Heavy Duty Rock Trommel Drum Sieve 5600x2015x2010mm 1-200 Tons per Hour

High Capacity Heavy Duty Rock Trommel Drum Sieve 5600x2015x2010mm 1-200 Tons per Hour

Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $1,500.00/sets >=1 sets
Get Best Price Contact Now

Detail Information
Applicable Industries: Energy & Mining Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 2 Years
Core Components: Gearbox, Motor Condition: New
Type: Other Application: Other, Glass, Mulch, Organics, Bark, MSW, Plaster Board
Voltage: As Client Request Dimension(L*W*H): As Per Different Model
Weight: 2200 KG Warranty: 24 Months
Product Name: Rotary Rotating Trommel Drum Sieve Heavy Duty Rock Trommel Screen Screen Material: Steel Bar, Steel Plate, Manganese Steel Wire Woven, Stainless Steel
Power: 3-45KW Dimension: 5600x2015x2010mm
Capacity: 1-200 Tons Per Hour Feeding Size: Less Than 300mm
Discharge Size: Less Than 6mm Or As Request

Product Description

Rotary Rotating Trommel Drum Sieve Heavy Duty Rock Trommel Screen

High Capacity Heavy Duty Rock Trommel Drum Sieve 5600x2015x2010mm 1-200 Tons per Hour 0



Shaftless trommel screen working principle:
Due to the turning and rolling of the material in the screen drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being clogged. GTS series shaftless trommel screen machine mainly consists of motor, gearbox, screen drum, frame, sealing cover, inlet and outlet. The screen drum is mounted obliquely on the frame. The motor is coupled to the drum unit via a coupling through a reducer to drive the screen drum unit to rotate about its axis. After the material enters the screen drum, due to the tilting and rotation of drum screen, the material on the screen surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the screen, and the unqualified material (the product on the sieve) ) is discharged through the end of the screen drum.

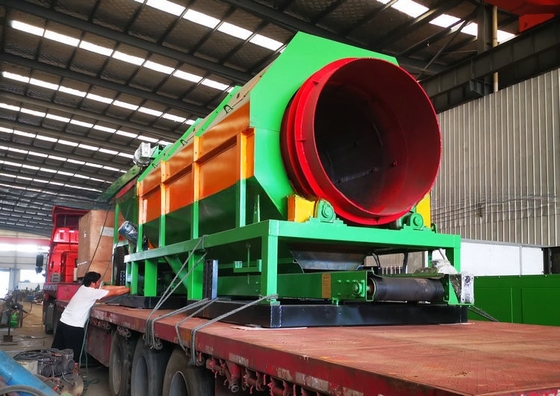

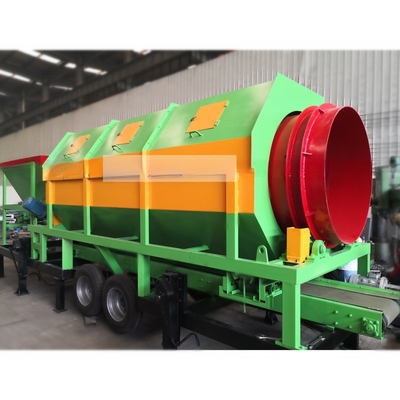

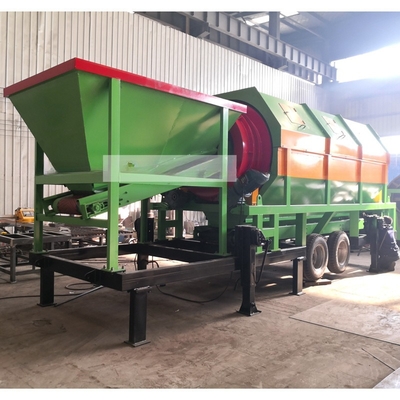

High Capacity Heavy Duty Rock Trommel Drum Sieve 5600x2015x2010mm 1-200 Tons per Hour 1High Capacity Heavy Duty Rock Trommel Drum Sieve 5600x2015x2010mm 1-200 Tons per Hour 2High Capacity Heavy Duty Rock Trommel Drum Sieve 5600x2015x2010mm 1-200 Tons per Hour 3



Application:munlcpal solid waste,construction waste,stone,compost,wood chips,sawdust,soil,coal,river sand,refractory materials,chemiacal,etc



Technical parameter of shaftless trommel screen



Model Capacity (t/h) Motor (kw) Drum size (mm) Feed Size (mm) Overall size (mm) Weight (KG)
GTS-1015 5-20 3 1000×1500 less than 200 mm 2600×1400×1700 2200
GTS-1020 10-30 4 1000×2000 less than 200 mm 3400×1400×2200 2800
GTS-1225 20-80 5.5 1200×2500 less than 200 mm 4200×1500×2680 4200
GTS-1530 30-100 7.5 1500×3000 less than 200 mm 4500×1900×2820 5100
GTS-1545 50-120 11 1500×4500 less than 200 mm 6000×1900×3080 6000
GTS-1848 80-150 15 1800×4800 less than 200 mm 6500×2350×4000 7500
GTS-2055 120-250 22 2000×5500 less than 200 mm 7500×2350×4800 9600
GTS-2265 200-350 30 2200×6500 less than 200 mm 8500×2750×5000 12800
Case

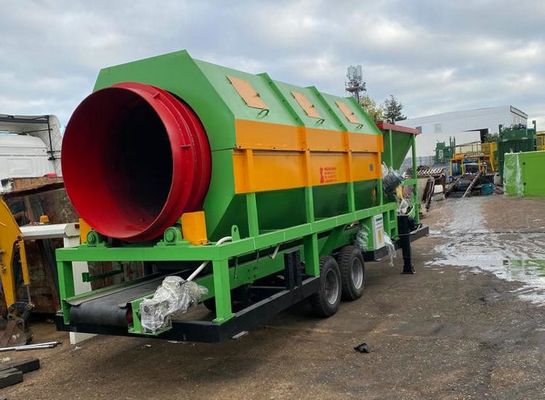

 High Capacity Heavy Duty Rock Trommel Drum Sieve 5600x2015x2010mm 1-200 Tons per Hour 4
