Construction Works Rotary Magnetic Trommel Screen for Steel Metal Granule Separation
Product Details:
| Place of Origin: | China |
| Brand Name: | sinolion |
| Certification: | ISO9001-2008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,000.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2022 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Type: | Circular | Application: | Ore, Coal, Coke, Mulch, Organics, Bark, MSW, Building Waste |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | Depends On Models |
| Weight: | 1620 KG | Warranty: | 1 Year |
| Power: | 3-45kw | Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel |
| Installation: | Supply Manual To Guide User | Capacity: | 50-500t/h |
| Feeding Size: | Less Than 300mm | Discharge Size: | As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | Product Name: | Rotary Magnetic Trommel Screen For Steel Metal Granule |
Product Description
Product Description

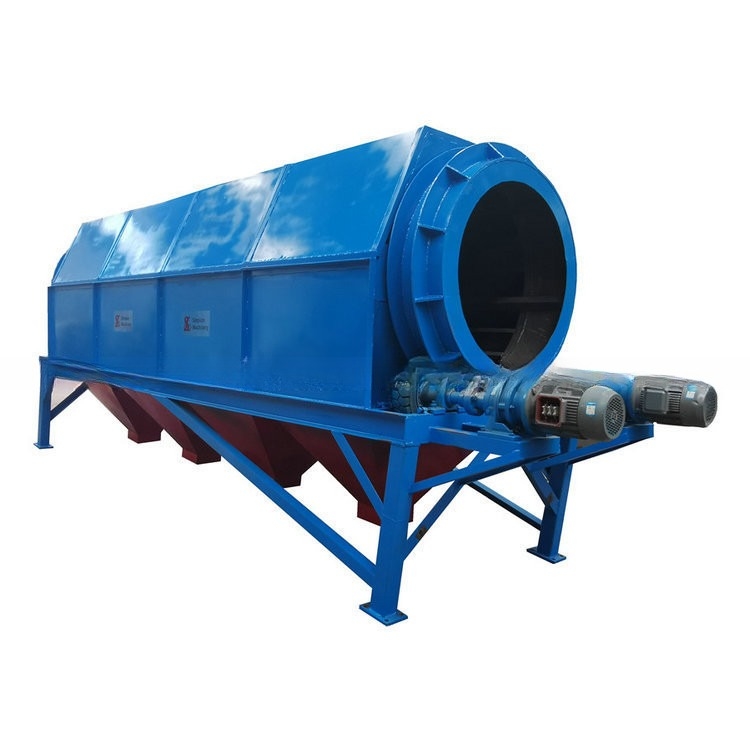

Rotary magnetic trommel screen for steel metal granule
Description of rotary separator trommel screenCounter flow wood chip screen is applied to material classification and ore washing operation. Counter flow wood chip screen can make out more than two kinds of products. The equipment has the advantages of simple installation and maintenance, easy operation, small installation slope, un-easy blocking, small space, low dust pollution, stable operation and high screening efficiency.
Description of rotary separator trommel screen
Counter flow wood chip screen is applied to material classification and ore washing operation. Counter flow wood chip screen can make out more than two kinds of products. The equipment has the advantages of simple installation and maintenance, easy operation, small installation slope, un-easy blocking, small space, low dust pollution, stable operation and high screening efficiency.
Characteristics of rotary separator trommel screen:
1. Adopting the principle of rolling conveying, the friction coefficient is small, the wear is light, and the mesh hole is not easy to block.
2. The roller support adopts the integral through-shaft structure, which runs smoothly, does not vibrate, and has low noise.

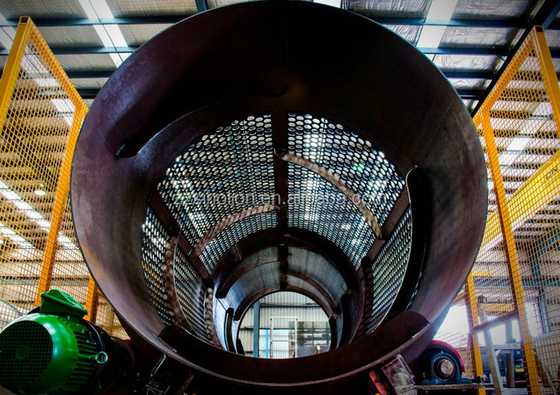

3. The internal drum screen accessories adopt split design, the structure is simple, and the replacement and repair are quick and convenient.
4. The drum body adopts an effective full sealing structure, which does not dust or pollute.
5. Safe and reliable operation, adopting deceleration transmission, high transmission efficiency, low power distribution, low energy consumption and obvious energy saving effect.
6. Different screen materials can be used according to customer requirements, mesh size, high screening efficiency, long service life and low maintenance cost.
1) Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
2) Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
3) Chemical, Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
4) Metallurgy, construction and other industries.
5) Woodchips, saw dust.
6) Garbage recyle, Municipal Solid Waste.
Technical parameters of rotary separator trommel screen:
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension (mm) |
GTS1015 | 50 | 3 | 1000 | 1500 | 0-100 | ≤300 | 2600×1400×1700 |
GTS1020 | 100 | 4 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
GTS1225 | 160 | 5.5 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
GTS1530 | 250 | 7.5 | 1500 | 3000 | 0-100 | ≤300 | 4460×1900×2820 |
GTS1545 | 350 | 11 | 1500 | 4500 | 0-100 | ≤400 | 5960×1900×3080 |
GTS1848 | 450 | 15 | 1800 | 4800 | 0-100 | ≤400 | 6500×2350×4000 |
GTS2055 | 600 | 22 | 2000 | 5500 | 0-100 | ≤400 | 7500×2550×4800 |
GTS2265 | 800 | 30 | 2200 | 6500 | 0-100 | ≤400 | 8500×2750×5000 |
Main features of counter flow wood chip screen:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

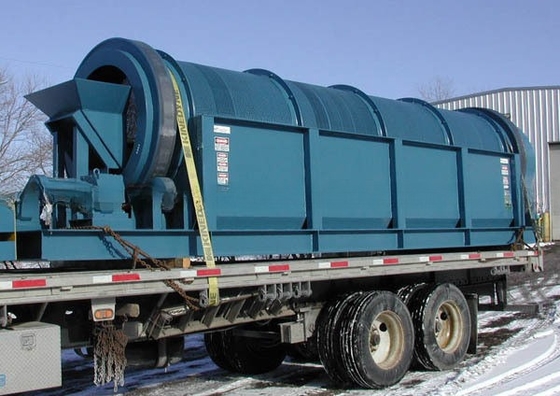

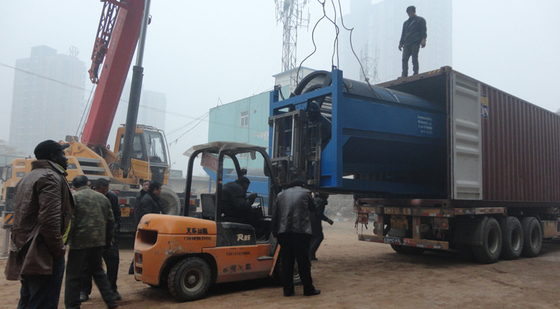

Packing & Delivery
Packaging of ounter flow wood chip screen | ||
Size | Depends on models | |
Weight | Depends on models | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
