7.5KW Municipal Solid Waste Sorting Processing Equipment for Garbage Trommel Screen
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,200.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Canada, United States, Germany, Philippines, Brazil, Mexico, Russia, Argentina, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 98% | Voltage: | 380V/415V/440V( As Client Request) |
| Dimension(L*W*H): | As Per Different Model | Weight: | 2200 KG, 6.5-10T |
| Warranty: | 24 Months Excluding Spare Parts | Marketing Type: | New Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Key Selling Points: | Mobile Gold Washing Trommel | Product Name: | Msw Sorting Processing Equipment Garbage Trommel Screen Manufacturer |
| Model: | Garbage Trommel Screen | Power: | 5.5KW, 7.5KW, 11KW |
| Dimension: | Depends On Model | Application: | Alluvial Gold Washing, Diamond, Rock, Soil, River Gold |
| Capacity: | 30-150 Tons Per Hour | Feeding Size: | Less Than 300mm |
| Discharge Size: | Less Than 6mm | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Product Description

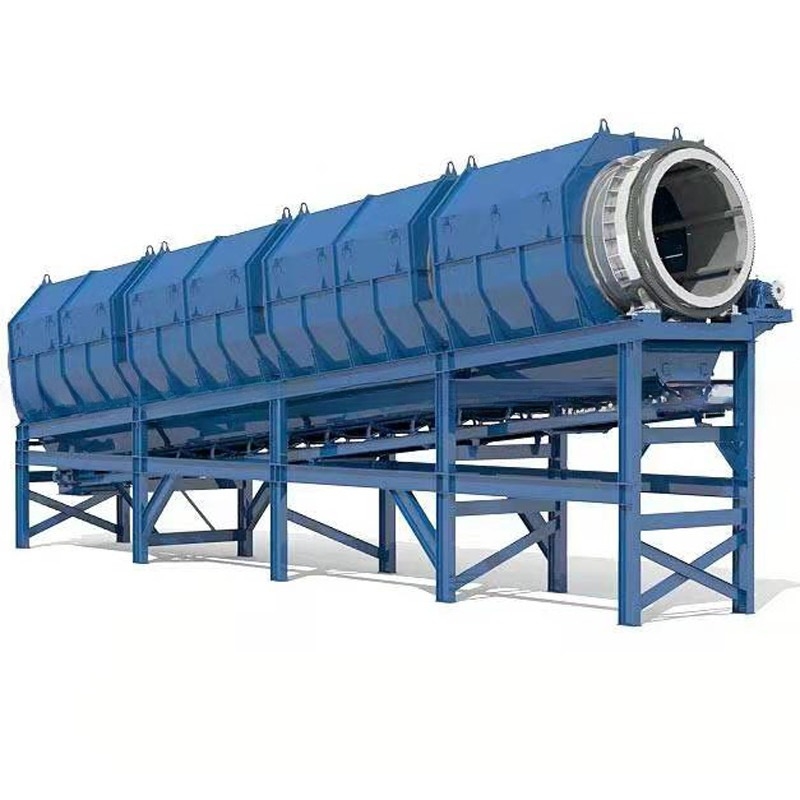

Municipal solid waste sorting processing equipment garbage trommel screen manufacturer
Waste sorting plant, which is also called garbage sorting machine, provides higher efficient sorting process to sort out the mixed waste with the higher collection rate. Through the advanced sorting process, the mixed municipal solid waste can be classfied into several types of materials, including plastic and paper, organic waste, brick and stones, metal, and other combustible waste.
Adopting the infrared sorting system, the automatic waste sorting equipment can guarantee the superior quality of the sorted materials. Because of the advanced conveying technology with conveyor belts of all types, can promise our highly efficient sorting machine is perfect and reliable logistics for the various materials. The sorting rate of garbage sorter can be more than 85%, which lay the foundation for the following recycling, pyrolysis or other processes.
Waste Sorting Plant: adopting the garbage sorting lines, garbage compactors and docking technology, municipal solid waste sorting plants are mainly suitable for sorting mostly household waste and some commercial and industrial wastes.
The waste sorting plant is in great demand because the serious environment pollution in urban. With the rapid development of the economy and the improvement of living standard, municipal solid waste has been keeping sustainable growth, and the composition of solid waste has taken place great changes. Bio-organic municipal waste has accounted for more than 40%. The rate of recyclable resource materials has reached about 40%, like paper, plastic, glass, metal, and so on. In order to fully improve the recycling rate of waste, our company has developed a set of solid waste recycling equipment, which makes garbage back to its image and classified again. Some are processed into nutritional soil as fertilizers for plants and trees. The sorted plastic can be reused to make plastic granules or refine oil by our plastic pyrolysis plant; paper can be recycled to make pulp and produce paper; glass and iron can play their role in resource utilizing again. This technology not only solves the problem of environmental pollution, but also recycles resources and makes the treasure out of waste.
Comprehensive winnowing machine: the waste sorting machine adopts comprehensive sorting management integrating proportion, volume, cyclone separation, bounce separation, magnetic separation methods together and solves many existing problems of other MSW sorting equipment. These problems include single simple classification, low pureness, and too much odorous gas released.
Garbage bag crusher: the machine integrates the function of bag breaking, crushing and other disposal. Garbage bags can be automatically ripped and large pieces of organic matters can be automatically broken. When the machine encounters hard matters, three-section hammering cutter could be bent to reduce the inorganic objects broken rate to the lowest.
Big garbage sorting machine: all big garbage can be fully separated (particle size is larger than 400 mm, separation rate 99%). Sandy separation rate is 95% (particle size below 30 mm, aperture can be adjusted according to garbage composition), the separation rate of organic compounds is 25% to 30% (within 30mm), and the machine can breaks all packaged bag if volume is larger in the garbage.
Smooth auto-feeder: specially designed installation angle of feeder can realize evenly feeding without any auxiliary measures. The garbage truck can directly discharge material to the hopper of equipment for saving the running time of grabbing bucket.
Where Does the Garbage Go After Sorting Most of the garbage:
Plastic: can be reprocessed by plastic pyrolysis machine to get plastic oil and carbon black, then get diesel by crude oil distillation unit; can be pelletized into plastic pellets by plastic pelletizing machine;
Metal: can be used to produce steel materials;
Organic: can get biogas from fermentation system;
Biomass wastes like straws, wood, sewage sludge, etc.: can be carbonized to get charcoals by charcoal making machine;
Brickbats and stones: can be briquetted into new bricks for construction use.
| Model | Drum size(m) | Drum inclination (°) | Drum speed (r/min) | Mesh size(mm) | Max feeding size(mm) | capacity(m³/h) | Motor power (kw) |
| GTS820 | Φ0.8×2 | 6-10 | 32 | 2-20 | Mesh size×2.5 | 7-30 | 3 |
| GTS830 | Φ0.83 | 6-10 | 32 | 2-20 | Mesh size×2.5 | 8-50 | 3 |
| GTS1020 | Φ1×2 | 6-10 | 25 | 2-20 | Mesh size×2.5 | 10-60 | 4 |
| GTS1030 | Φ1×3 | 6-10 | 25 | 2-20 | Mesh size×2.5 | 11-80 | 4 |
| GTS1230 | Φ1.2×2 | 6-10 | 20 | 2-20 | Mesh size×2.5 | 12-100 | 5.5 |
| GTS1240 | Φ1.2×4 | 6-10 | 20 | 2-20 | Mesh size×2.5 | 14-120 | 5.5 |
| GTS1530 | Φ1.5×3 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 16-120 | 5.5 |
| GTS1540 | Φ1.5×4 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 18-150 | 7.5 |
| GTS1550 | Φ1.5×5 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 20-180 | 11 |
| GTS1560 | Φ1.5×6 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 22-200 | 11 |
| GTS1850 | Φ1.8×5 | 6-10 | 14 | 2-20 | Mesh size×2.5 | 24-220 | 15 |
| GTS1860 | Φ1.8×6 | 6-10 | 14 | 2-20 | Mesh size×2.5 | 26-240 | 15 |
| GTS2050 | Φ2×5 | 6-10 | 12 | 2-20 | Mesh size×2.5 | 50-600 | 22 |
| GTS2080 | Φ2×8 | 6-10 | 12 | 2-20 | Mesh size×2.5 | 80-700 | 22 |
| GTS2260 | Φ2.2×6 | 6-10 | 10 | 2-20 | Mesh size×2.5 | 100-800 | 30 |
| GTS2280 | Φ2.2×8 | 6-10 | 10 | 2-20 | Mesh size×2.5 | 120-850 | 30 |
