Gold Mining Equipment Trommel Screen for Wood Chip Sieving at 380V/415V/440V Voltage
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $13,100.00/sets 1-1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 100 Set/Sets per Month Firewood trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Advertising Company | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Gearbox, Pump | Condition: | New |
| Type: | Circular | Application: | Ore |
| Voltage: | 380V/415V/440V | Dimension(L*W*H): | 5500*1900*2100mm |
| Weight: | 1790 KG | Warranty: | 1 Year |
| Product Name: | Firewood Trommel Screen | Dimension: | According To Capacity |
| Discharge Size: | As Request | Key Selling Points: | Automatic |
| Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven | Installation: | Supply Manual To Guide User |
| Feeding Size: | Less Than 300mm | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
| Keywords: | Gold Mining Equipment | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description
Professional Production And Manufacture Of Trommel Screen For Sieving Wood Chips To Collect Wood Trommel Screen
The firewood trommel screen will efficiently remove all fines (dirt, gravel, wood chips & splinters) through the fine screen and most of the kindling and smaller pieces of wood through the coarse screen. The firewood trommel screen is designed as an add on to a bulk processing system. Cleaning the wood in the last step before packaging for bulk retail sale. For wood yards this means the wood is cleaner, more saleable and results in more accurate weight measurement. With a constantly loaded feeding hopper, the capacity of this machine is estimated in excess of 60m3 per hour. Talk with our team about customising a firewood trommel screen to suit your requirements.
Structure and Principle

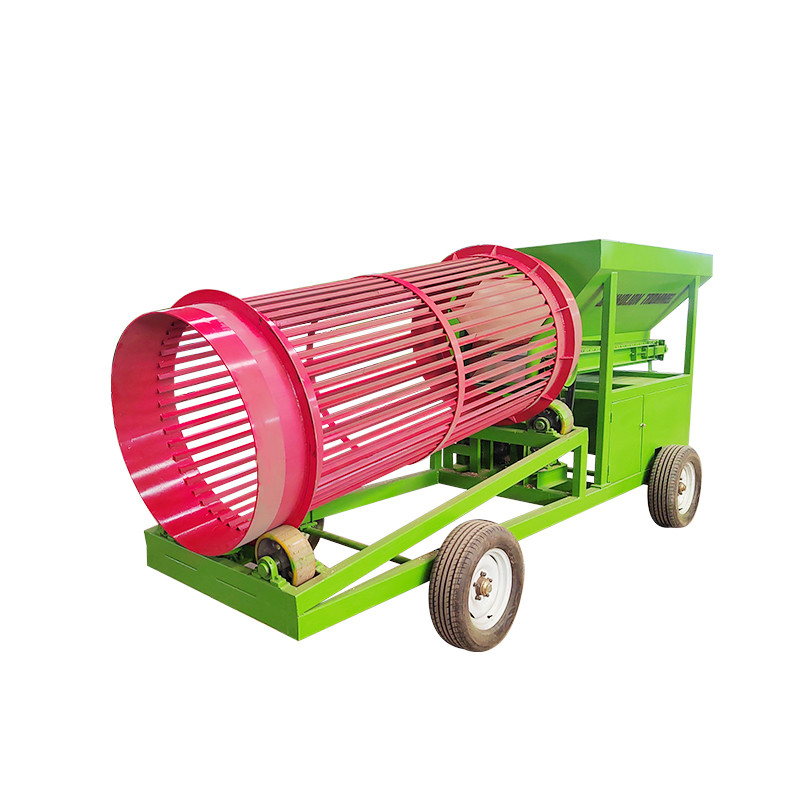

Firewood tumbler is composed of feeding hopper, screen drum, chassis, wheel, transmission device, and control cabinet(optional parts: diesel engine generator and belt conveyor). It is a new type of mobile screening platform, and suitable for the power plant, coking plant, building materials, metallurgy, chemical, mining and other industries. It has the features that less investment, less labor, simple operation and flexible.
After the materials is feed into the drum, on the one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different number of meshes. The different materials fall into different hopper and then be sent to different finished product stacks by manpower or belt conveyor.
Product Name | Mobile Firewood Trommel Screen | ||||||
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | |||
FTS1230 | 60 | 3 | 1200 | 3000 | |||
