How Does A Trommel Filter Material? A trommel screens material by spinning a drum, usually with some kind of paddles or bars running inside the length of the tube to catch and lift the passing debris. Once picked up, gravity takes over and the debris falls back down, causing a break up of the material (as it tumbles). This process is repeated until the debris is small enough to pass through the screen (fines) while the larger debris exits through the opposite end of the trommel drum. This produces two products, one of a finer soil and one of rocks, roots, wood waste, etc., which is referred to as rejects, overs, or trash. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.
 |

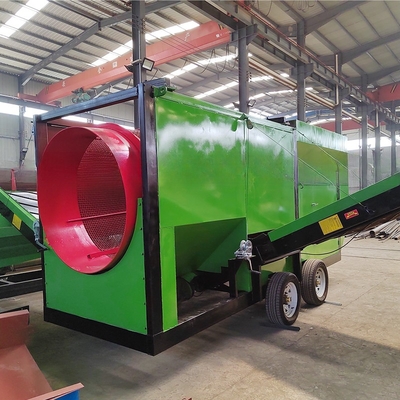

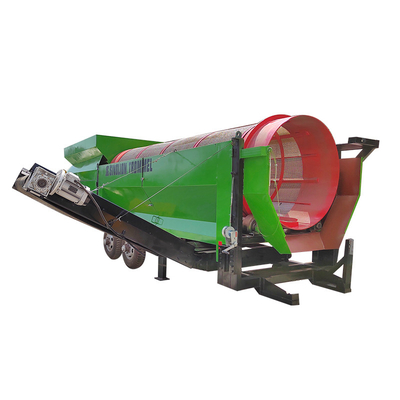

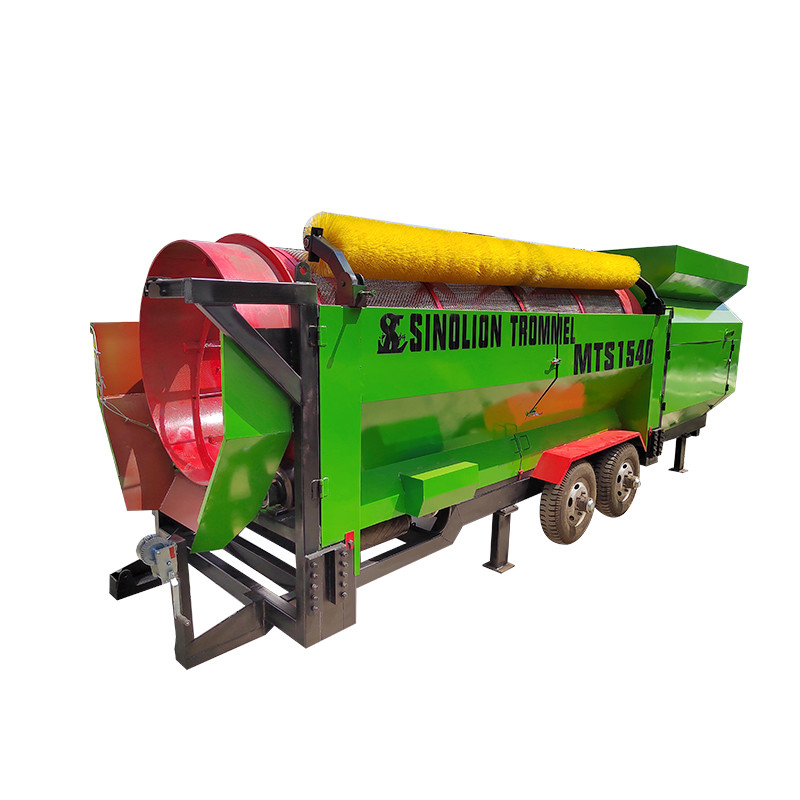

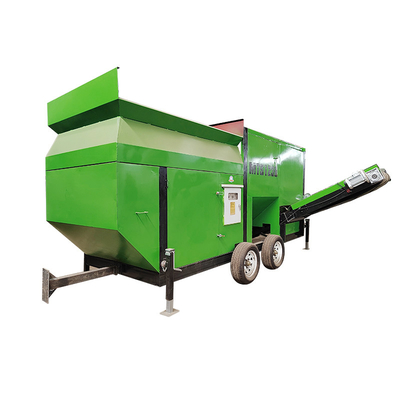

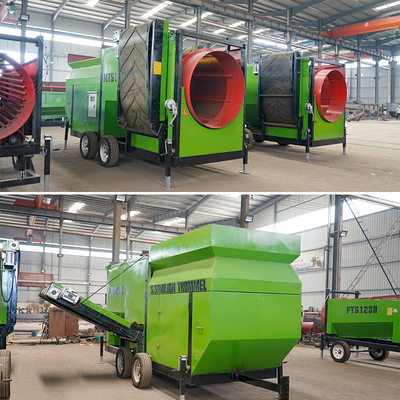

Portable Topsoil Processor Competitive Trommel Screening Plant with 1200mm Diameter
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $15,900.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Farms, Home Use, Energy & Mining | Showroom Location: | Canada, United States, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 98% | Voltage: | 220-420V, Customized |
| Dimension(L*W*H): | 5.4*2.1*2.7m | Weight: | 3210 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine |
| Key Selling Points: | Competitive Price | Product Name: | Mobile Topsoil Trommel Screen |
| Usage: | Remove Dirty Soil,separate Different Sizes | Keywords: | High Quality, Easy To Operate |
| Capacity: | 60m3/h | Feature: | High Performance |
| After Sale Service: | Supply Technical Support At Any Time | Installation: | Send Video, CAD Drawing, And/or Dispatch Engineer |
| Trommel Diameter: | 1200mm | Trommel Length: | 3000mm |
Product Description
High Quality Topsoil Processor Portable Topsoil Trommel Screening Plant Mobile Topsoil Trommel Screen
Portable trommel screens are very useful tools for contractors and landscapers. These machines are also referred to as trommel drums or drum screeners. The soil generated from job sites and re-developed land in many cases can be recycled, re-purposed and reused to create great organic products for use with farms, plant and tree nurseries, landscaping firms and more.
Structure and Principle
The mobile trommel screen is mainly composed of hopper, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Model | Trommel diameter | Trommel length | capacity | Weight | Dimensions |
MTS1230 | 1200mm | 3000mm | 60m3/h | 3210kg | 5.4*2.1*2.7m |
