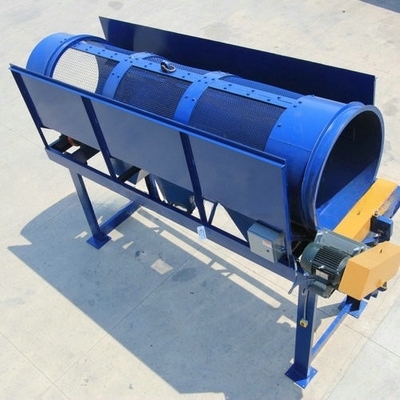

City Garbage Recycling Drum Screen with Heavy Duty Design and Stainless Steel Material
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $8,000.00/sets 1-1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. 20GP container or 40GP container Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight. Motor is packed with steel c |
| Supply Ability: | 40 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 2 Years |
| Core Components: | Gearbox, Motor | Condition: | New |
| Type: | Other | Application: | Other, Glass, Mulch, Organics, Bark, MSW, Plaster Board |
| Voltage: | As Client Request | Dimension(L*W*H): | As Per Different Model |
| Weight: | 2200 KG | Warranty: | 24 Months |
| Product Name: | Msw Municipal Solid Waste Sorting Line And Recycling Plant | Screen Material: | Steel Bar, Steel Plate, Manganese Steel Wire Woven, Stainless Steel |
| Power: | 3-45KW | Dimension: | 5600x2015x2010mm |
| Capacity: | 1-200 Tons Per Hour | Feeding Size: | Less Than 300mm |
| Discharge Size: | Less Than 6mm Or As Request | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
| Port: | Qingdao, Dalian, Tianjin, Lianyungang, Dalian, Shanghai, Guangzhou( As Client Request) | ||
Product Description
Municipal solid waste (MSW) contains recyclable fractions, such as plastics, mixed paper, cardboard, and metals. The demand for these materials is rising, compared with that for primary resources. trommel drum cylinder is used to separate materials by size, separating the biodegradable fraction of mixed municipal waste or separating different sizes of crushed stone. Contractors may screen their site debris into two fractions; a saleable topsoil for farms, nurseries and site-work, as well as cleaned rock for aggregates or landscaping work. This allows the contractor to resell their waste, instead of incurring the cost of sending it for disposal.
Applications of trommel screen:
Peat, topsoil, construction on & demolition waste, crusher stone and concrete, woodchip, compost, hard-core, skip waste, sand and gravel, municipal solid waste, green waste, landfill recovery.
Waste recycling trommel screen specifications:
| Model | Capacity | Power | Screen Diameter | Screen Length | Discharge Size | Input Size | Dimension (L×W×H) | Weight |
| (t/h) | (kw) | (mm) | (mm) | (mm) | (mm) | (mm) | (Kg) | |
| GTS1015 | 50 | 3.0 | 1000 | 1500 | 0~100 | ≤300 | 2600×1400×1700 | 2200 |
| GTS1020 | 100 | 4.0 | 1000 | 2000 | 0~100 | ≤300 | 3390×1400×2140 | 2800 |
| GTS1225 | 160 | 5.5 | 1200 | 2500 | 0~100 | ≤300 | 4146×1600×2680 | 4200 |
| GTS1530 | 250 | 7.5 | 1500 | 3000 | 0~100 | ≤300 | 4460×1900×2820 | 5100 |
| GTS1545 | 350 | 11 | 1500 | 4500 | 0~100 | ≤400 | 5960×1900×3080 | 6000 |
| GTS1848 | 450 | 15 | 1800 | 4800 | 0~100 | ≤400 | 6500×2350×4000 | 7500 |
| GTS2055 | 600 | 22 | 2000 | 5500 | 0~100 | ≤400 | 7500×2550×4800 | 9600 |
| GTS2265 | 800 | 30 | 2000 | 6500 | 0~100 | ≤400 | 8500×2750×5000 | 12800 |
