High Capacity Wood Chip Rotary Shaker for Biomass Drum Sieve Compost Roller Screening
Product Details:
| Place of Origin: | China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $15,900.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Home Use, Retail, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United Kingdom, United States, Italy, Mexico, UAE, Colombia, Australia, None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2022 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Motor | Condition: | New |
| Type: | Circular | Application: | Ore |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | 5400*2100*2700mm |
| Weight: | 3210 KG | Warranty: | 1 Year |
| Keyword: | Wood Chip Rotary Shaker For Biomass | Screen Material: | Compost, Soil, Wood, Biomass, Sand And Gravel Etc. |
| Dimension: | 5400*2100*2700mm | Installation: | Supply Manual To Guide User |
| Capacity: | ≤60m³/h | Feeding Size: | Less Than 300mm |
| Discharge Size: | 2mm-80mm | Color: | Green Or As Client Request |
| After-sales Service Provided: | Field Installation, Commissioning And Training | ||
Product Description
High efficient wood chip rotary shaker for biomass drum sieve compost roller screen machine

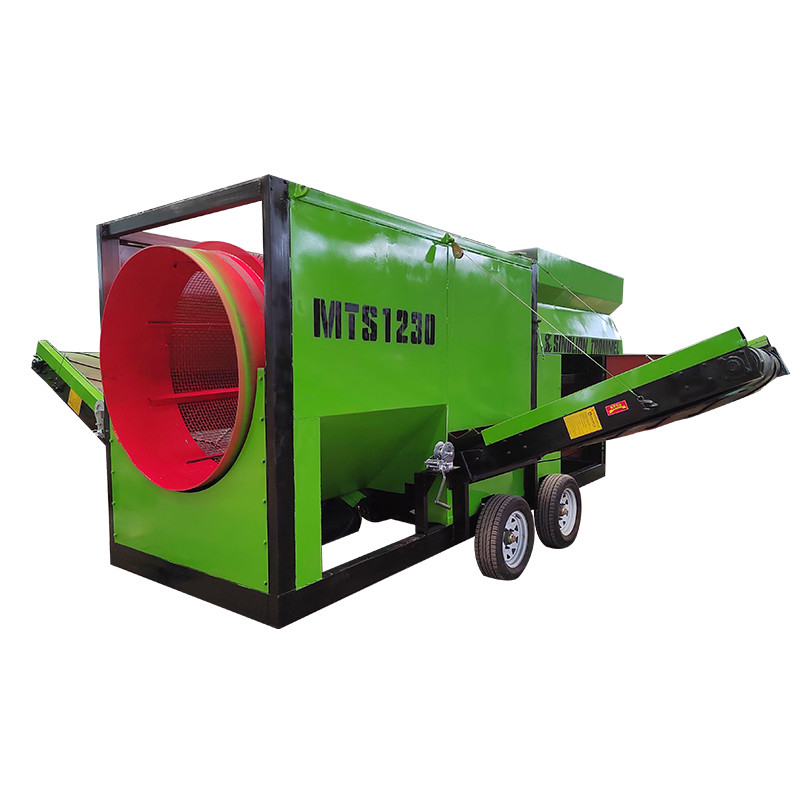

Like all machines in the MTS series, the MTS1230 compost roller trommel screen machine
not picky about sifting out waste and raw materials regards. lt is equally suitable for compost, soil, wood, biomass, sand and gravel etc.
Screening materials: earth, sand, gravel, compost,wood chips, construction waste, recycling material,slag, crushed stane and stone in grain sizes from 2mm to 80mm
The MTS1230 compost roller trommel screen machine is one of the best selling trommel screens in our factory. It can be used to screen compost, wood or cow, sheep manure, etc.
It including a 4kw electric type,screen area is 8.3m2,processing capacity is also 60m³/h per hour,product size is 5400*2100*2700mm. It has left and right conveyor belts and brushes.
working principle
The working principle of the trommel screen is that after the material enters the trommel screen from the feed hopper, under the action of power, the material enters the trommel screen and is screened into materials of specific particle size. The screened material is transported out by the side belt conveyor.
| Model | MTS1230 | ||
| Process material | compost, soil, top soil, wood or cow, sheep manure wood shipps, sawdust etc | ||
| Screen capacity | ≤60m³ | Total power | 11.4kw |
| Roller Diameter | 1200mm | Drum length | 3000mm |
| screen area | 8.3m2 | Weight | 2900KG |
| | |
