High Capacity Mobile Soil Screen Portable Topsoil Trommel Screener With 60m3/h Capacity
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $15,900.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Home Use, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United States, Italy, Mexico, UAE, Colombia, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 98% | Voltage: | 220-420V, Customized |
| Dimension(L*W*H): | 5.4*2.1*2.7m | Weight: | 3300 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2022 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC, Other, Engine |
| Key Selling Points: | High Productivity | Product Name: | Mobile Topsoil Trommel Screen |
| Usage: | Remove Dirty Soil,separate Different Sizes | Keywords: | High Quality, With Conveyors |
| Capacity: | 60m3/h | Feature: | High Performance |
| After Sale Service: | Supply Technical Support At Any Time | Installation: | Send Video, CAD Drawing, And/or Dispatch Engineer |
| Trommel Diameter: | 1200mm | Trommel Length: | 3000mm |
Product Description

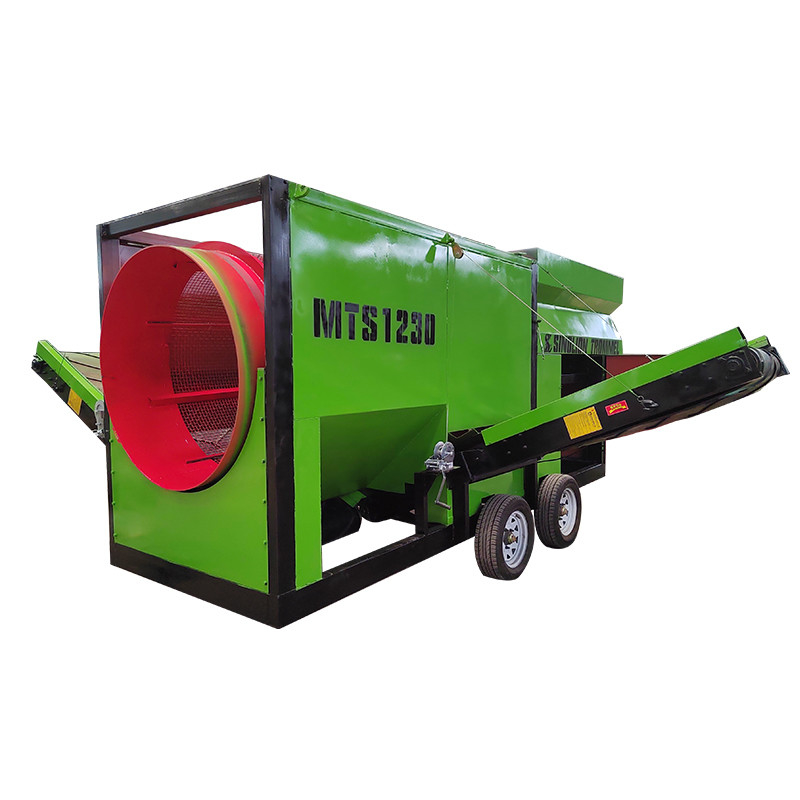

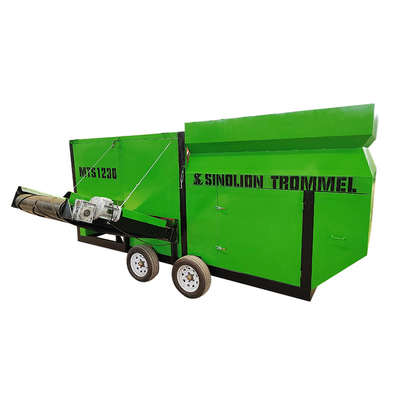

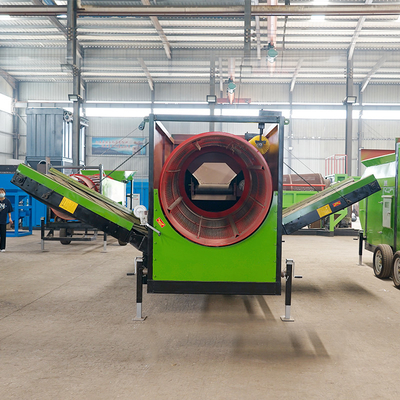

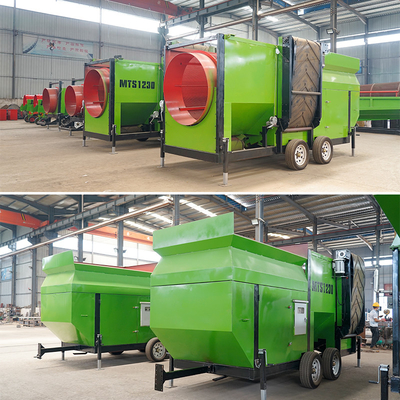

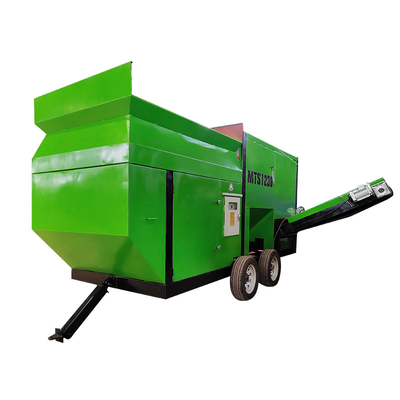

Trommel screens are a great option for producing topsoil. Our topsoil trommel screen is an electric powered/generator powered portable topsoil screening machine. It can be used for separating materials from medium. This machine will quickly and easily separate rocks and debris from soil , sand, and other free-flowing materials. Gone are the days of hand sifting soil and loam. Whether it is large oversize boulders or wet sticky topsoil with large volumes of clay present, Sinolion have a screening solution to meet your application. Our company offer a wide range of trommel types and flip flow screens to be utilised in the recovery and removal of unwanted materials such as aggregate, clay, leaves and plants to provide clean, high quality topsoil. Our MTS1230 mobile trommel ranges boast robust, durable designs coupled with a smart control systems to ensure for an efficient trouble free screening solution.
Structure and Principle: The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors. Characteristic of trommel screen: 1.Convenient feeding and efficient discharge. The machine is equipped with a feeding conveyor in the hopper, so that the material is conveyed to the drum through the conveyor after the hopper, so that the feeding is smooth; and it is equipped with 2 side discharge conveyors, which can convey the sieved fine material to a different orientation to prevent bottom stacking. 2.High screening efficiency: Material rides on the screening surface for effective separation. The equipment can be equipped with cleaning brush. In the screening process, the materials entering the screening cylinder can be screened according to impurities and dirt to improve the screening efficiency of the equipment. 3. The screening composition is large and easy to enlarge: In the same size, the circular area is larger than other shapes, so the effective screening area is large, so that the material can fully contact the screening, so that the screening component per unit time is large. 4. Good working environment: The whole screening cylinder can be sealed with a sealed isolation cover to completely eliminate dust and block splashing during screening and avoid pollution to the working environment. 5.Quick and easy drum changes – No tools.
Model | Trommel diameter | Trommel length | capacity | Weight | Dimensions |
MTS1230 | 1200mm | 3000mm | 60m3/h | 3210kg | 5.4*2.1*2.7m |
