2. The width of the side discharge belt conveyor is 650mm, the length is 2400mm, the thickness of the conveyor belt is 11mm, the discharge height is 1750mm, the side belt conveyor is expanded, the angle is 25 degrees, and the herringbone endless belt.
 |
Portable Trommel Vibrating Screen for Gravel and Wood Chip Composting in Any Location
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $10,700.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops | Showroom Location: | Canada, United Kingdom, United States, Germany |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Motor, Gear | Condition: | New |
| Type: | LINEAR, Rotary Drum Filter Screen | Application: | Screening Compost Sand Gravel And Manure, Screening |
| Voltage: | 110v-440v | Dimension(L*W*H): | 4.3m*1.9m*2.45m |
| Weight: | 2750 KG | Warranty: | 1 Year |
| Product Name: | Rotary Vibrating Screen | Keyword: | Rotary Vibrating Separator |
| Motor: | Vertical Vibrating Motor | Material: | Carbon Steel |
| Usage: | Fine Particles Screening | Name: | Circular Vibrating Sieve Equipment |
| Function: | Screening\separation\sorting\sieving\Grading | After-sales Service Provided: | Service Machinery Overseas |
Product Description
Product Description

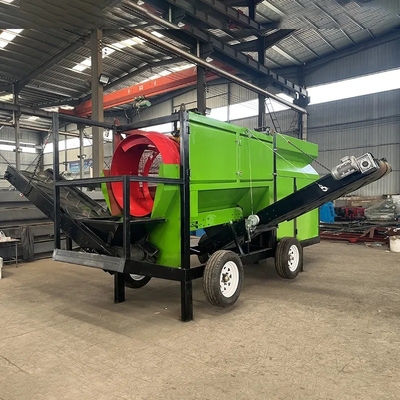

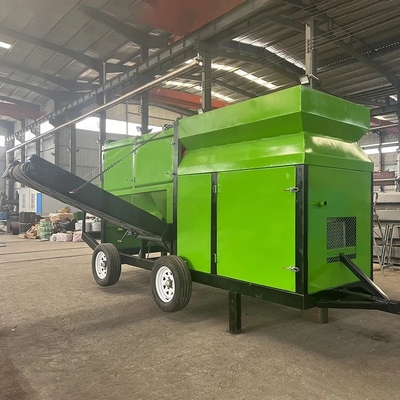

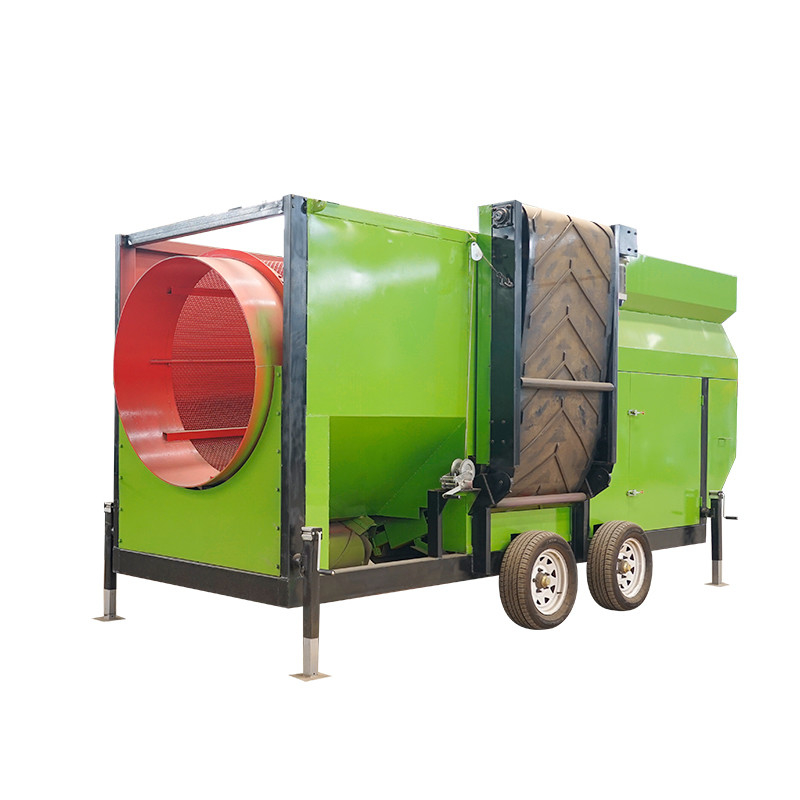

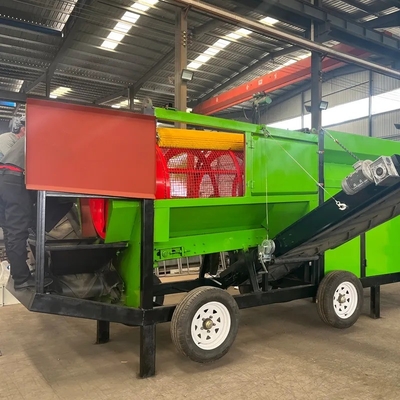

Mobile trommel screen is mainly composed of feed hopper, transmission part, drum, brush, chassis, rear axle, traction, control cabinet, etc. It can screen compost, topsoil, sand, gravel and other materials. Manganese wire woven screen and steel plate perforated screen can be selected according to the material.
Working principle
The material is poured into the hopper by the loader, transported to the trommel by the conveyor of the hopper, and then the motor reducer drives the roller to rotate the drum through the coupling, and the material particles in the drum follow The sieve, the drum rotates to a certain height, is thrown and dropped by gravity, and the finished product is obtained by filtering through the sieve. Finally, the screened materials are transported to different places by different conveyors.
Specification
Model | Trommel diameter (mm) | Trommel length (mm) | Capacity (m³/h） | Dimensions （L*W*H) |
MTS1022 | 1000 | 2200 | ≤30 | 4.3*1.9*2.45 |
MTS 1022
Product Details
If there is sticky material in the material, the brush can clean up the sticky material to prevent the material from clogging the screen. Brush components include brackets, springs, bearings, etc. The brush and the roller work at the same time. After the brush wears out, the spring will automatically touch the roller to continue cleaning. The brush is made of nylon, with a diameter of 200mm and a length of 1540mm.
The frequency conversion control cabinet controls the drum speed by adjusting the speed of the motor
Packing & Delivery
Certifications
Company Profile
FAQ
Q1: How long is the delivery time?
A: It will takes about 7-10 days for delivery after pre-payment. Q2: What is the driving force? A: Japan Honda Gasoline Engine. The Honda Gasoline Engine could supply Environmental Protection Certificate. Q3: How long is the warranty period? A: One year Q4: Do you have a certificate of origin, EU certification, etc.? A: yes, of course Q5: How many wheels does it have? A: There are two and four rounds, according to customer requirements
