2-3 Layers 30m3/h Mobile Trommel Screen for Gravel Compost Pig and Sheep Manure
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $10,700.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Restaurant, Construction Works , Food & Beverage Shops | Showroom Location: | Canada, United Kingdom, United States, Germany |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Motor | Condition: | New |
| Type: | LINEAR | Application: | Ore, Topsoil, Compost, Glass, Mulch, Organics, Bark, Wood Chips |
| Voltage: | 110v-440v | Dimension(L*W*H): | 4.3m*1.9m*2.45m |
| Weight: | 2750 KG | Warranty: | 1 Year |
| Product Name: | Linear Vibrating Screen | Keyword: | Rotary Vibrating Separator |
| Motor: | Vertical Vibrating Motor | Material: | Carbon Steel |
| Name: | Linear Vibrating Sieve Screen Machine | Usage: | Separation Screening |
| Function: | Screening\separation\sorting\sieving | After-sales Service Provided: | Video Technical Support |
| Layer(s): | 2-3 Layers | ||
Product Description
Product Description

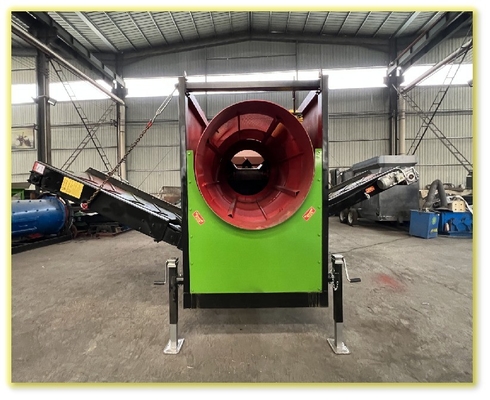

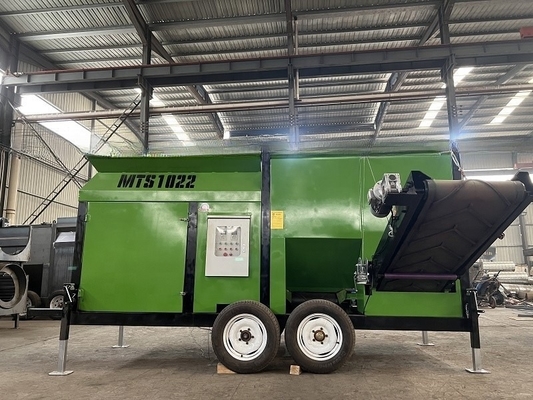

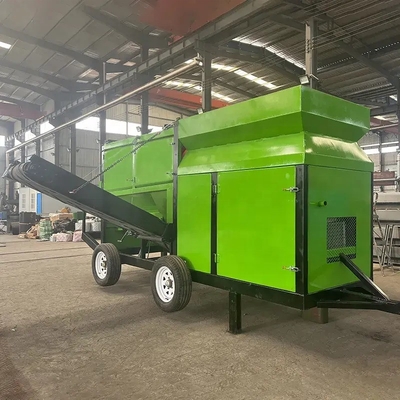

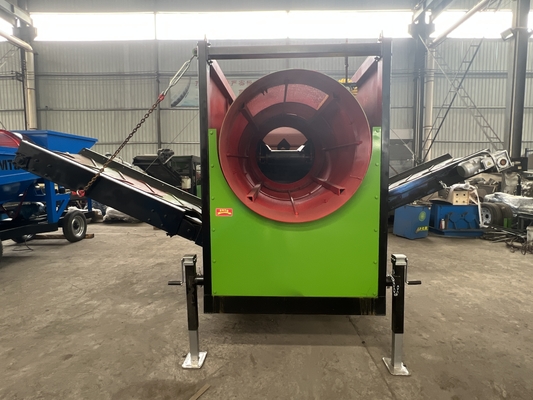

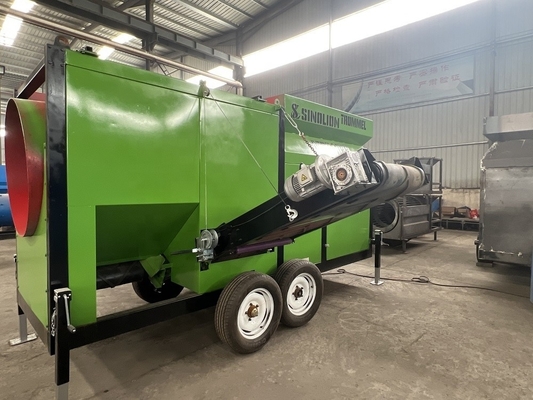

MOBILE TROMMEL SCREEN 1022
MTS1022 model equipment can use manganese wire braided screen to achieve wear resistance. You can also choose stainless steel screen, which can play the role of corrosion resistance and rust prevention. In addition, the machine is equipped with a feeding flat conveyor belt and two side conveyor belts, which improves the working efficiency. The brushes equipped on the screen can prevent the screen from clogging and increase the service life of the screen. The front end of the equipment is equipped with a traction device, which is convenient for multi-site operation and easy to move. It is worth mentioning that we are also equipped with a frequency conversion control cabinet, which can control the rotation speed of the drum and the switch of the equipment.3D Sketch
1. Hopper length: 2000mm, width 1600mm, suitable for forklifts with a width of less than 1900mm.
2. The screen area is 5.3m3, the standard matching woven screen aperture is 20mm, the wire diameter is 4mm, and it can also be customized according to customer requirements.
3. Side discharge belt conveyor width 650mm, length 2400mm, conveyor belt thickness 11mm, discharge height 1750mm, side discharge belt conveyor unfolded, angle 25 degrees, herringbone endless belt
Specification
|
Model
|
Trommel diameter
(mm)
|
Trommel length
(mm)
|
Capacity
(m³/h)
|
Dimensions
(L*W*H)
|
|
MTS1022
|
1000
|
2200
|
≤15
|
4.3*1.9*2.45
|
Packing & Delivery
Certifications
Company Profile
Sincerely welcome to send your inquiry, you can get best quotation and professional service!
Want to Know more details about this product
