Small-scale Sieving of Pig and Sheep Manure using Mobile Portable Trommel Screen
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $10,700.00/sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Restaurant, Food Shop, Construction Works , Energy & Mining | Showroom Location: | Egypt, United Kingdom, United States, France, Germany |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Gearbox | Condition: | New |
| Type: | Circular | Application: | Ore |
| Voltage: | 110v-440v | Dimension(L*W*H): | 4.3m*1.9m*2.45m |
| Weight: | 2750 KG | Warranty: | 1 Year |
| Product Name: | Compost Trommel Screen | Keyword: | Drum Screen Separator |
| Capacity: | 40yd³/h | Advantage: | Long Working Life |
| Material: | Carbon Steel | Usage: | Separation Screening |
| Name: | Circular Vibrating Sieve Equipment | Function: | Screening\separation\sorting\sieving |
| After-sales Service Provided: | Avaible | Layer(s): | 1-5 Layers |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
Product Description
Mobile trommel screen is mainly composed of feed hopper, transmission part, drum, brush, chassis, rear axle, traction, control cabinet, etc. It can screen compost, topsoil, sand, gravel and other materials. Manganese wire woven screen and steel plate perforated screen can be selected according to the material.
Working principle
The material is poured into the hopper by the loader and transported to the drum screen by the conveyor of the hopper. Then the motor reducer drives the drum through the coupling to rotate the drum. The material particles in the drum follow the screen. The drum rotates to a certain height and is thrown down by gravity. , The finished product is obtained by filtering through a sieve. Finally, the screened materials are transported to different places by different conveyors. The MTS1022 mobile trommel screen contains two side discharging conveyor belts, which can screen 2-3 kinds of materials, which is very convenient and efficient.
Product Details
Specification
Model | Trommelll diameter (mm) | Trommel length (mm) | Capacity (m³/h) | Dimensions （L*W*H) |

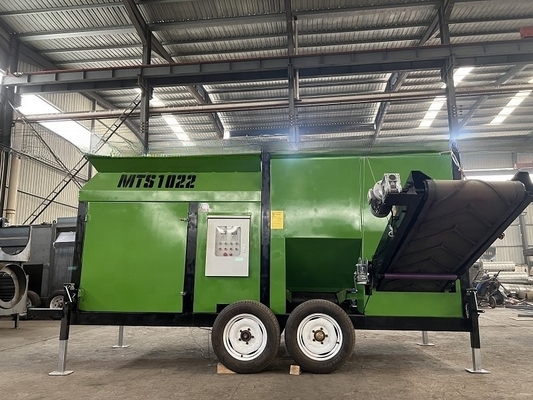

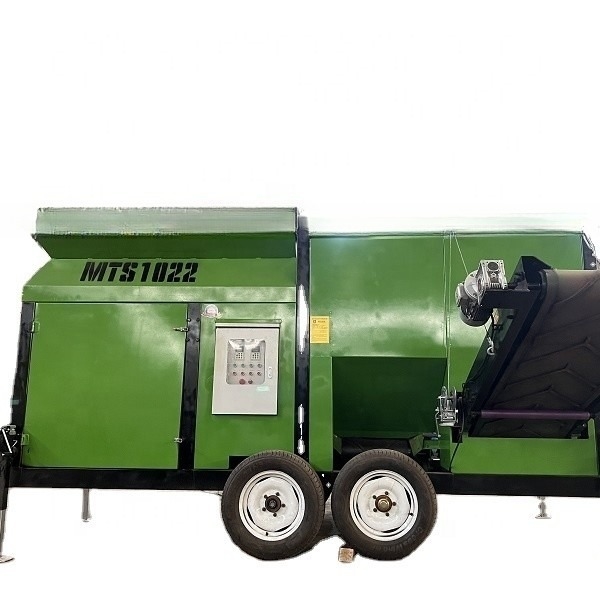

MTS1022 | 1000 | 2200 | ≤30 | 4.3*1.9*2.45 |
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Sincerely welcome to send your inquiry, you can get best quotation and professional service!
Want to Know more details about this product
