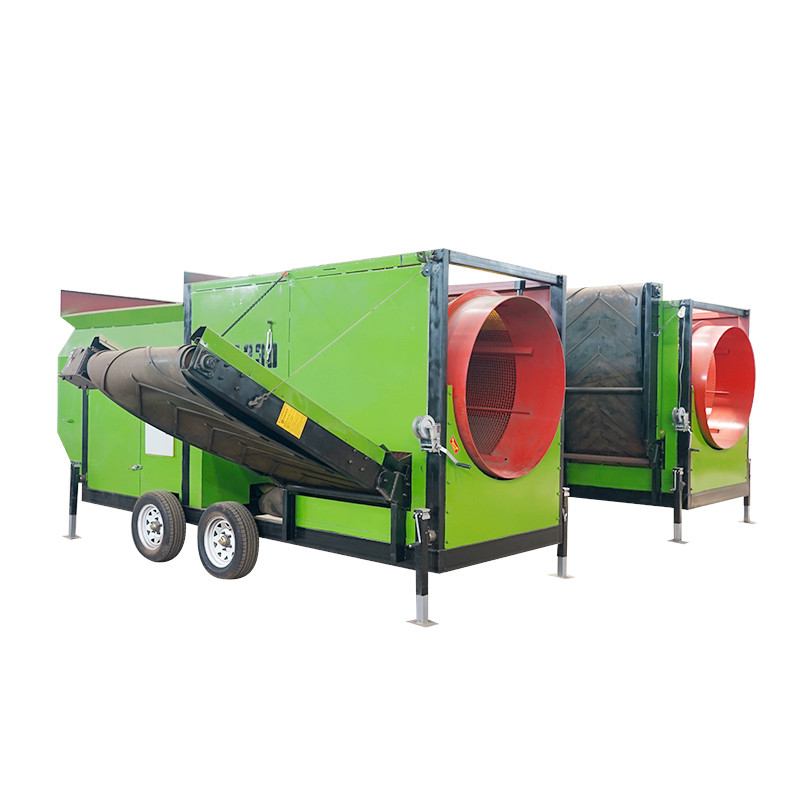

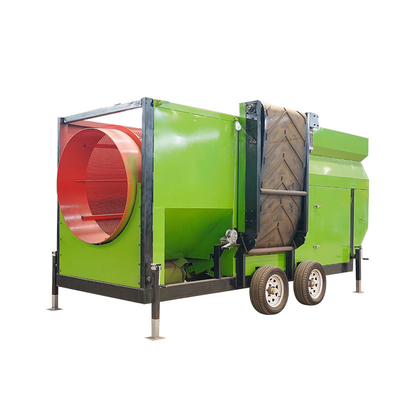

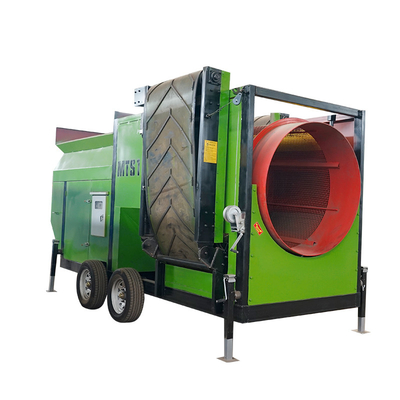

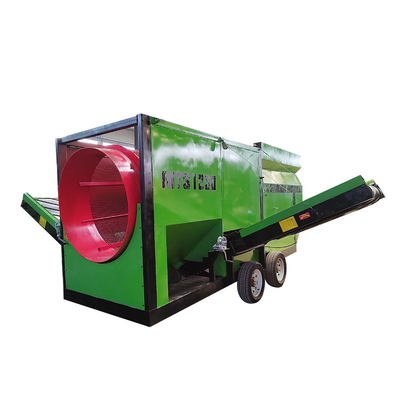

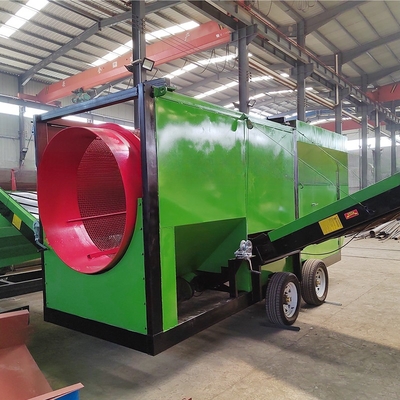

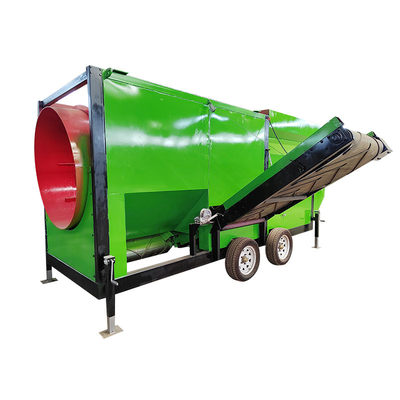

60m3/h Capacity Gold Roller Vibrating Screen Compost Drum Sieve Machine for Compost
Product Details:
| Place of Origin: | China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $15,900.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Home Use, Retail, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United Kingdom, United States, Italy, Mexico, UAE, Colombia, Australia, None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2022 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Motor | Condition: | New |
| Type: | Circular | Application: | Ore |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | 5.4*2.1*2.7m |
| Weight: | 2900 KG | Warranty: | 1 Year |
| Keyword: | Drum Sieve Machine | Screen Material: | Compost, Soil, Wood, Biomass, Sand And Gravel Etc. |
| Dimension: | 5.4*2.1*2.7m | Installation: | Supply Manual To Guide User |
| Capacity: | ≤60m³/h | Feeding Size: | Less Than 300mm |
| Discharge Size: | 2mm-80mm | Color: | Green Or As Client Request |
| After-sales Service Provided: | Field Installation, Commissioning And Training | ||
Product Description
gold roller vibrating screen compost drum sieve machine trommel sieve for sale
Product Description
The MTS1230 compost roller trommel screen machine is one of the best selling trommel screens in our factory. It can be used to screen compost, wood or cow, sheep manure, etc.
It including a 4kw electric type,screen area is 8.3m2,processing capacity is also 60m³/h per hour,product size is 5400*2100*2700mm. It has left and right conveyor belts and brushes.
working principle
The working principle of the trommel screen is that after the material enters the trommel screen from the feed hopper, under the action of power, the material enters the trommel screen and is screened into materials of specific particle size. The screened material is transported out by the side belt conveyor.
specifications
| Model | MTS1230 | ||
| Process material | compost, soil, top soil, wood or cow, sheep manure wood shipps, sawdust etc | ||
| Screen capacity | ≤60m³ | Total power | 10.6kw |
| Operatin Length | 20' 2" | Operating Height | 7' 8" |
| Travel Length | 20' 2" | Travel Height | 8' 6" |
| Horsepower | 33.5hp | Weight | 2900KG |
