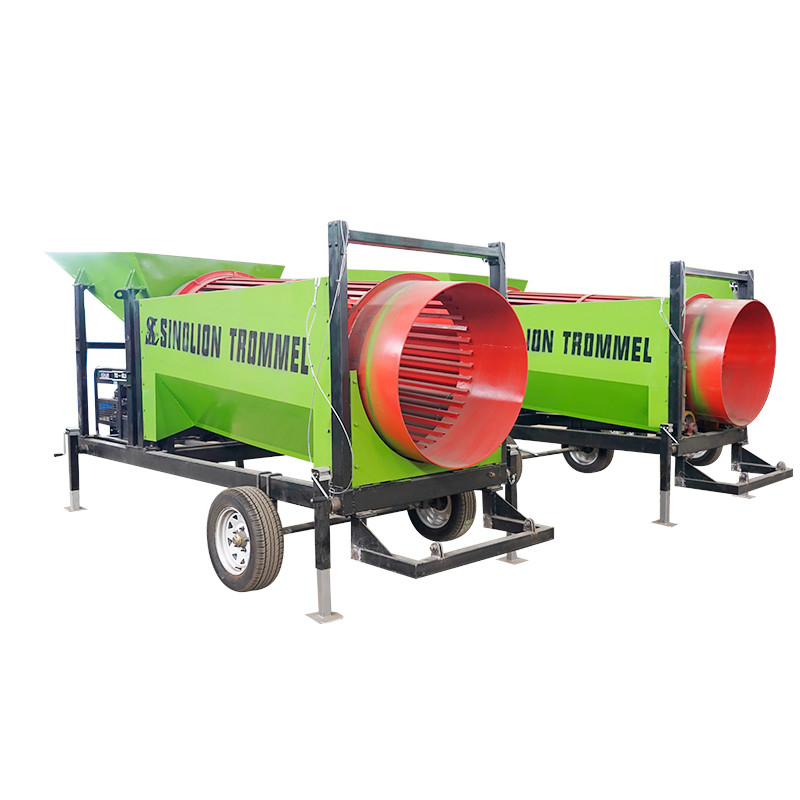

Mobile Wood Chips Sifter Screen and Small Compost Organic Fertilizer Sieving Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $6,000.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Type: | Compost Trommel Screener | Application: | Sawdust, Firewood, Topsoil, Compost, Solid, Municipal Soild Waste, Mulch, Organics, Bark, MSW, Municipal Solid Waste |
| Voltage: | 380V/415V/440V | Dimension(L*W*H): | As Per Different Model |
| Weight: | 2200 KG | Warranty: | 24 Months |
| Product Name: | China Stationary Wood Chips Sifter Screen Machine | Model: | Wood Chips Sifter |
| Power: | 3-45KW | Screen Material: | Steel Bar, Steel Plate, Manganese Steel Wire Woven, Stainless Steel |
| Installation: | Supply Manual To Guide User | Capacity: | 1-200 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | Less Than 6mm Or As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | ||
Product Description
High Performance Factory Price Wood Chip Drum Screen Firewood Trommel Screen
The firewood trommel screen will efficiently remove all fines (dirt, gravel, wood chips & splinters) through the fine screen and most of the kindling and smaller pieces of wood through the coarse screen. The firewood trommel screen is designed as an add on to a bulk processing system. Cleaning the wood in the last step before packaging for bulk retail sale. For wood yards this means the wood is cleaner, more saleable and results in more accurate weight measurement. With a constantly loaded feeding hopper, the capacity of this machine is estimated in excess of 60m3 per hour. Talk with our team about customising a firewood trommel screen to suit your requirements.
Structure and Principle
Firewood tumbler is composed of feeding hopper, screen drum, chassis, wheel, transmission device, and control cabinet(optional parts: diesel engine generator and belt conveyor). It is a new type of mobile screening platform, and suitable for the power plant, coking plant, building materials, metallurgy, chemical, mining and other industries. It has the features that less investment, less labor, simple operation and flexible.
After the materials is feed into the drum, on the one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different number of meshes. The different materials fall into different hopper and then be sent to different finished product stacks by manpower or belt conveyor.
Product Name | Mobile Firewood Trommel Screen | ||||||
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | |||
FTS1230 | 60 | 3 | 1200 | 3000 | |||
