Stone Sand PC Small Mini Portable Diesel Engine Hammermill Crusher Machine for Crushing

Stone Sand PC Small Mini Portable Diesel Engine Hammermill Crusher Machine for Crushing

Product Details:

Place of Origin: China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $1,500.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: None
Condition: New Type: Hammer Crusher, Diesel Engine Or Motor
Application: Chemical Industry, Stone, Ore, Glass, Motor Type: DC MOTOR
Capacity(t/h): 1-280t/h Dimension(L*W*H): As Per Different Model
Weight: 880 KG Warranty: 1 Year
Marketing Type: New Product 2020 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Motor Key Selling Points: Easy To Operate
After-sales Service Provided: Engineers Available To Service Machinery Overseas Model: PC Series Hammer Crusher Mill Machine
Installation: Supply Manual And Send Engineer To Guide User Feeding Size: 0-350mm
Discharge Size: Adjustable Screen Grade Size: Adjustable
Hammer Heads Material: 40Cr Wearing Parts: Hammer Head And Side Plates
Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

Product Description



Hammermill crusher things by the high speed collisions between the hammer and the materials and it is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic material, construction material, road building, and petroleum & chemical industries.Hammer mill crusher has the advantages of simple structure, large crushing ratio and high production efficiency. the grate gap of hammer crusher can be adjusted according to the user's different particle size requirements.



Hammermills can be operated on household current. Large hammer mills used in automobile shredders may be driven by diesel engine or electric motors.



Hammermill crusher technical parameters:



Model

Feed size

(mm)

Discharge size

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(T)

PC400×300 ≤100 ≤10 5-10 11 0.8
PC600×400 ≤120 ≤15 10-25 18.5 1.5
PC800×600 ≤120 ≤15 20-25 55 3.1
PC1000×800 ≤200 ≤15 20-40 90 7.9
PC1000×1000 ≤200 ≤15 30-70 132 8.66
PC1250×1250 ≤250 ≤25 50-100 185 10.5
PC1300×1200 ≤250 ≤29 60-150 240 13.6
PC1400×1400 ≤280 ≤30 120-170 280 16.2
PC1600×1600 ≤350 ≤30 200-280 450 19.6



Stone Sand PC Small Mini Portable Diesel Engine Hammermill Crusher Machine for Crushing 0

Stone Sand PC Small Mini Portable Diesel Engine Hammermill Crusher Machine for Crushing 1

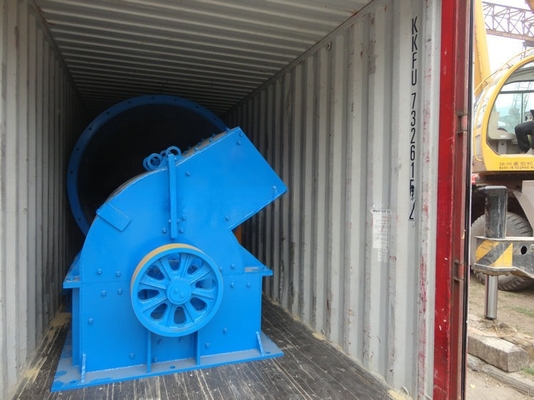

Packaging & Shipping

Stone Sand PC Small Mini Portable Diesel Engine Hammermill Crusher Machine for Crushing 2

Stone Sand PC Small Mini Portable Diesel Engine Hammermill Crusher Machine for Crushing 3

Working site



Stone Sand PC Small Mini Portable Diesel Engine Hammermill Crusher Machine for Crushing 4

Our Services

1. Pre-sale service:

1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).

2) Welcome to visit us at any time, we will pick you up.



2. Sale service:

1) Keep clients updated when our company gets advance payment.

2) Confirm production details with clients.

3) Take photos and send all pictures to customers during production.

4) Inspection and testing the product before delivery;

5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.

6) logistics service if needed.



3. After Sale service:

1) Provide foundation drawing to the clients for installation.

2) Besides, our engineers are available to help with installation and workers training.

3) Repairing and maintenance if any problem during the warranty.

4) Spare parts and wearing parts will be offered with production cost in 10 years.



Stone Sand PC Small Mini Portable Diesel Engine Hammermill Crusher Machine for Crushing 5



Company Information

 Stone Sand PC Small Mini Portable Diesel Engine Hammermill Crusher Machine for Crushing 6Stone Sand PC Small Mini Portable Diesel Engine Hammermill Crusher Machine for Crushing 7



FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.



Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.



Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan,  Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc



Question 4: How long of your machine quality guarantee terms ?

Answer: Quality guarantee time is one year(wearing parts excluded).
