Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $2,000.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Manufacturing Plant, Energy & Mining Showroom Location: Egypt, Indonesia, Mexico, Kenya, Sri Lanka, South Africa, Malaysia, None
Condition: New Type: Roller Crusher
Application: Chemical Industry, Stone, Ore, Glass, Coal Motor Type: AC Motor
Capacity(t/h): 5-120t/h Dimension(L*W*H): As Per Different Model
Weight: KG Warranty: 18 Month Excluding Spare Parts
Marketing Type: New Product 2020 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 2 Years
Core Components: Motor Key Selling Points: Competitive Price
Product Name: Jaw/cone/vertical Impact/hammer Roller Crusher Keyword: Hammer Roller Crusher
Model: Double Roll Crusher Machine Installation: Supply Manual And Send Engineer To Guide User
Feeding Size: 0-25mm Discharge Size: Adjustable From 0-40mm
Double Roller Material: Manganese Steel Motor Quantity: 2 Motors
Wearing Parts: Rollers And V-belt Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

Production description

Jaw/cone/vertical impact/hammer roller crusher with mobile or stationary type

Roll crusher is applicable to the medium and fine crushing of the brittle bulk materials in industry of cement,chemical, electric power, mining, metallurgy, building materials, refractorymaterials, coal and other industries. The roller crusher can also be used for crushingof the materials with compression strength less than 160Mpa. The roll crushercan be also suitable for the crushing of the materials with high andintermediate hardness in industry of metallurgy, building materials, refractoryand other industries.

 Installation Supply Manual and Engineer Guide for High Manganese Double Roller Crusher 0

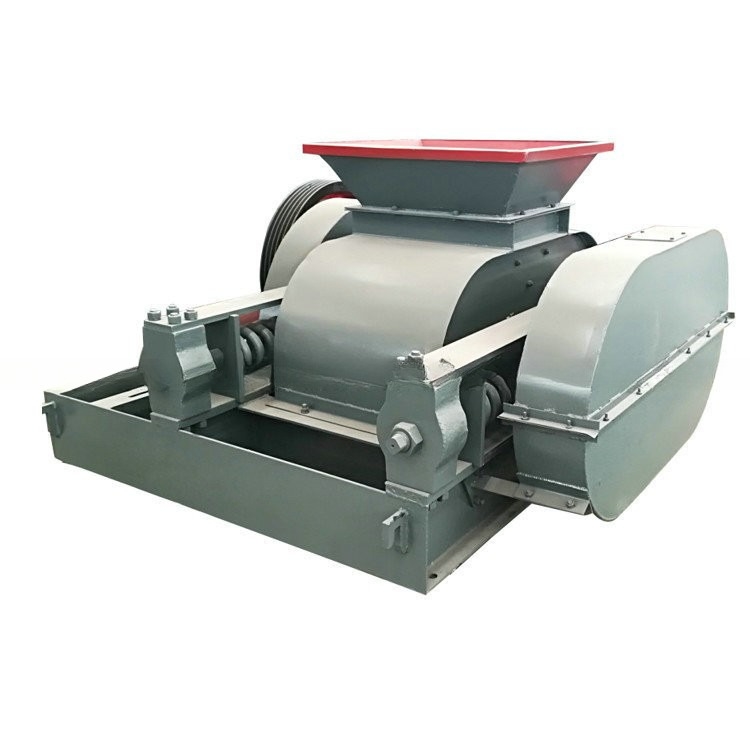

The roller crusher consists of the rack, a pair of rollers, V-belt driving device and spring safety device. Two motors rotate by the driving of pulley, which drives two rollers for rotating in opposite rotation. A roller shaftstands on the fixed bearing that is connected with the rack, and the otherroller axis is on the movable bearing. The movable bearing can move along therack rails to enlarge the width of discharge opening between the two rollers itwill discharge the non-broken materials if necessary.



Double Roller Crusher Types

The major types of roller crusher are toothed roll crusher and smooth roller crusher. According to the requirements, the rolls are smooth (double roller crusher) or toothed (toothed roller crusher). When rotating, ore and othermaterials pass the two crushing rollers, and they are crushed or grounded intosmaller pieces. Capacity range of roller crusher is from 5 - 110 t/h.



Technical parameters

Double roll crusher  technical parameters:



Model

Roller diameter

(mm)

Roller length

(mm)

Input size

(mm)

Output size

(mm)

Capacity

(t/h)

Power

(KW)

Weight

(t)

2PG-400X250 400 250 ≤25 0-8 5-10 5.5x2 1.5
2PG-500X400 500 400 ≤30 0-10 8-20 11x2 3.2
2PG-610X400 610 400 ≤40 0-20 13-35 15x2 4.5
2PG-610X800 610 800 ≤40 0-20 15-40 18.5x2 12.25
2PG-750X500 750 500 ≤45 0-20 15-40 18.5x2 12.25
2PG-750X700 750 700 ≤45 0-20 20-50 22x2 14
2PG-900X500 900 500 ≤55 0-40 20-50 22x2 14
2PG-900X900 900 900 ≤55 0-50 20-70 37x2 16.8
2PG-900X1200 900 1200 ≤55 0-50 25-90 55x2 20.8
2PG-1200X1000 1200 1000 ≤70 0-60 25-100 45x2 40.2



 Installation Supply Manual and Engineer Guide for High Manganese Double Roller Crusher 1Installation Supply Manual and Engineer Guide for High Manganese Double Roller Crusher 2Installation Supply Manual and Engineer Guide for High Manganese Double Roller Crusher 3



Installation Supply Manual and Engineer Guide for High Manganese Double Roller Crusher 4Installation Supply Manual and Engineer Guide for High Manganese Double Roller Crusher 5Installation Supply Manual and Engineer Guide for High Manganese Double Roller Crusher 6Installation Supply Manual and Engineer Guide for High Manganese Double Roller Crusher 7
