Product Details:

Place of Origin: Henan, China
Brand Name: SINOLION

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $9,000.00/sets 1-1 sets
Get Best Price Contact Now

Detail Information

Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year Core Components: Engine, Bearing, Gearbox, Motor, Gear, Pump, Sieve, Hammer
Voltage: 380v, 415V, 450V Or As Request Power: 11kw-15kw
Dimension(L*W*H): 1500*700*1000mm Warranty: 1 Year
Key Selling Points: Low Maintenance Cost Applicable Industries: Home Use, Energy & Mining
Showroom Location: None Weight (KG): 900
After-sales Service Provided: Engineers Available To Service Machinery Overseas Application: Peanut, Straw Stalk, Corn Cob, Straw, Couch Grass
Spare Parts: Hammer Blades Quatity: 24 Pieces
Feeding Size: Less Than 300mm Color: Yellow, White, Red, Blue, Gray( Or As Client Request)
Motor Speed: 1440r/min After-sales Service: Online Support
After Warranty Service: Video Technical Support

Product Description

Production description

Small hammer crusher introduction:

1. Our hammer crusher is the ideal equipment for advanced production of edible mushroom cultivition, biomass fuel pellet making. It can process the wood, branch into sawdust or powder at the same time.



2. The hammer crusher machine also can be used for making raw materials for shaving broad, sawdust broad and MDF.



The hammer crusher produced by our company is a king of newly-developed wood crushing equipment for raw wood, which is an innovation on the basis of traditional crusher-making theories both home and abroad. It is composed of machine body, knife chipping part, chips re-crushing part and sieving part, etc .It combines both chipping and crushing in one machine, can make sawdust in one passage, no need to use wood chipper for pre-processing of wood logs.



Hammer crusher machine advantage:

1.1. Wood crusher can crush wood, corn cob, agri waste, etc.

1.2. It doesn't need drying wood and can directly crush them.

1.3. It adopts the blade cutting and high-speed airflow impact, collision double crushing function as an organic whole, and also can finish the small material processing operations at the same time . In the crushing process of the blade cutting, rotor produce high-speed airflow, along with the direct of the blade cutting to rotate , materials in the air flow speeds up, and make the material crush by double pieces again at the same time, and speed up the material crushing rate.

Main usage:

It is a whole body with blade and crusher, and can crush 1-20cm wood and branch. It also can adapt bamboo, grass, corn stalk, kaoliang stalk and other kinds of fiber materials.



Technical parameters


Wood crusher technical parameter:



Model SLFS-400 SLFS-500 SLFS-600 SLFS-700 SLFS-800 SLFS-1000
Feeding size(mm) 160*200 180*200 200*200 200*250 250*300 300*400
Rotation speed(r/min) 2800 2600 2600 2300 2000 2000
Power(kw) 11 15 18.5-22 22-30 30-45 75
Blades 4 4 4 4-6 4-6 4-6
Output (kg/h) 1200 1500 2000 2500 3000 4000
Cutter diameter 400mm 500mm 600mm 700mm 800mm 1000mm



Corn Stalk Hammer Mill Crusher with Spare Parts Hammer Feeding Size Less Than 300mm 0Corn Stalk Hammer Mill Crusher with Spare Parts Hammer Feeding Size Less Than 300mm 1

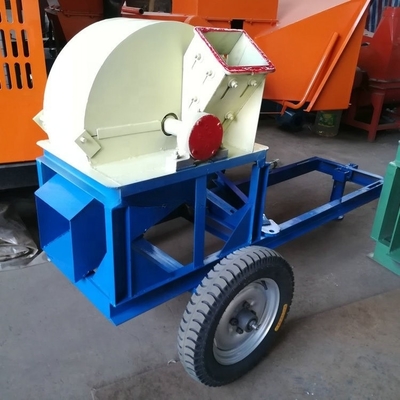

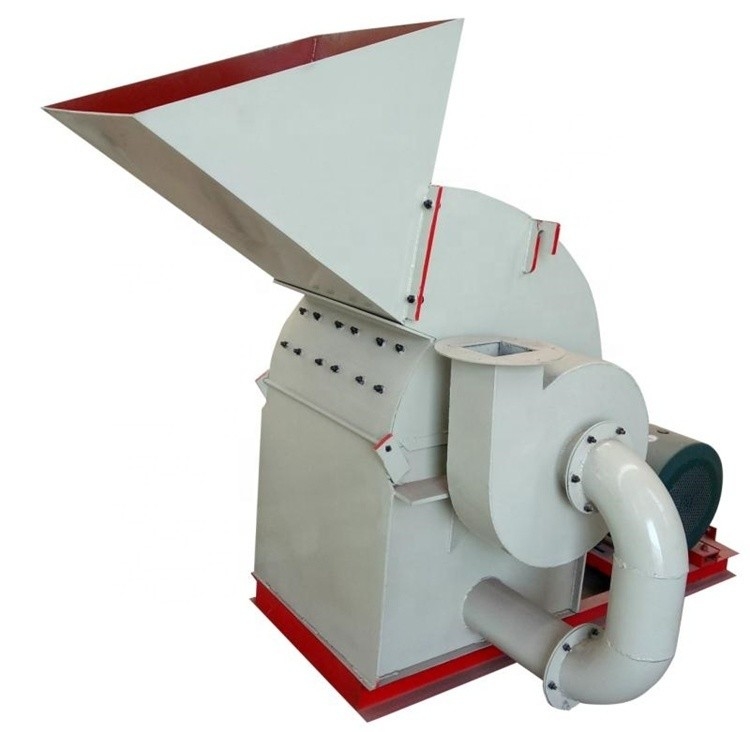

Hammer mill crusher:
Corn Stalk Hammer Mill Crusher with Spare Parts Hammer Feeding Size Less Than 300mm 2

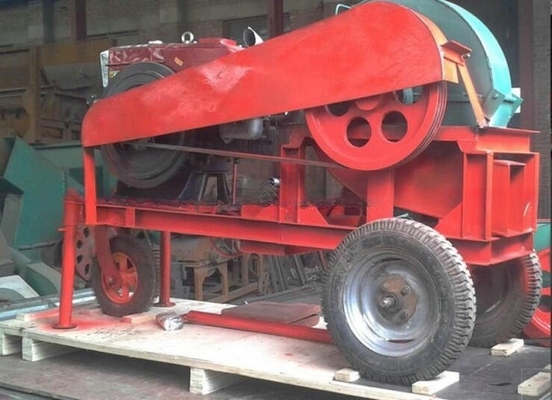

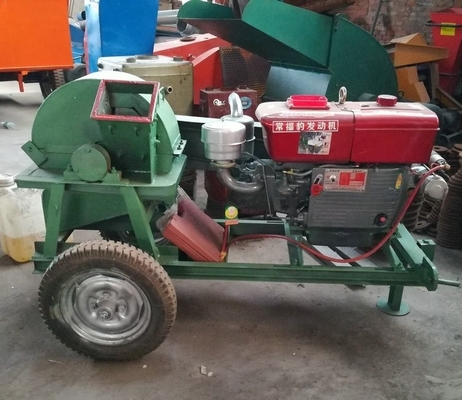

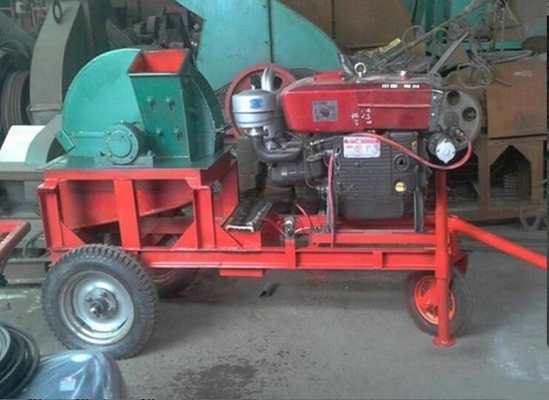

Diesel engine wood crusher:
Corn Stalk Hammer Mill Crusher with Spare Parts Hammer Feeding Size Less Than 300mm 3Corn Stalk Hammer Mill Crusher with Spare Parts Hammer Feeding Size Less Than 300mm 4Corn Stalk Hammer Mill Crusher with Spare Parts Hammer Feeding Size Less Than 300mm 5
Corn Stalk Hammer Mill Crusher with Spare Parts Hammer Feeding Size Less Than 300mm 6Corn Stalk Hammer Mill Crusher with Spare Parts Hammer Feeding Size Less Than 300mm 7
Corn Stalk Hammer Mill Crusher with Spare Parts Hammer Feeding Size Less Than 300mm 8

Working site

 Corn Stalk Hammer Mill Crusher with Spare Parts Hammer Feeding Size Less Than 300mm 9Corn Stalk Hammer Mill Crusher with Spare Parts Hammer Feeding Size Less Than 300mm 10Corn Stalk Hammer Mill Crusher with Spare Parts Hammer Feeding Size Less Than 300mm 11

Company Information
Corn Stalk Hammer Mill Crusher with Spare Parts Hammer Feeding Size Less Than 300mm 12

With over 30 years of experience in this industry, Zhengzhou Sinolion Machinery Co., Ltd. understands the needs and expectations of our customers well and we strive to accommodate them. We take pride in our work and you can trust our ability to get your job done right at the first time. With a courteous and knowledgeable Sales Team, we can answer any of your questions or concerns with confidence and our service technicians are trained to understand all of the dynamics of the quality equipment we sell and serve, guaranteeing customer satisfaction every time.

Sinolion has continuously improved product values and performance. Sinolion products have been exported to Serbia, The United Kingdom, Turkey, Malaysia, Indonesia, Kazakhstan, Vietnam, North Korea, Egypt, Mexico, Ghana, Tanzania, Nigeria, South Africa, Chile, Bolivia, Canada and other countries and regions.

After 30 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise.

Our number one priority is you and we are not afraid to show it!

FAQ

01

Q: How do I choose a suitable wood crusher for my project?

A: In your first inquiry, please offer us information about your raw materials, its size, moisture, and the capacity per hour you required, also tell the output per hour you required



02

Q: After ordered a wood log machine, how do we slove the equipment installing?

A: For a small single wood log machine, we offer you user manual, customer will install and commissioning as operating introduction; For a complete wood log machine production line, we will send our engineer to your workplace to help you install and commissioning untill machines work normally.



03

Q: What’s the delivery time after I pay the deposit?

A: We will clear delivery time in sales contract, Single wood log machine often deliveried within 10-15 working days after receipt of the pre-payment. Complete production line will delivery within 25-40 working days after receipt of the pre-payment.



04

Q: How long of your machine quality guarantee terms ?

A: Quality guarantee time is one year(wearing parts excluded).
