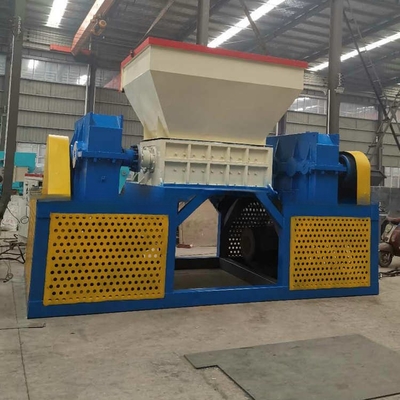

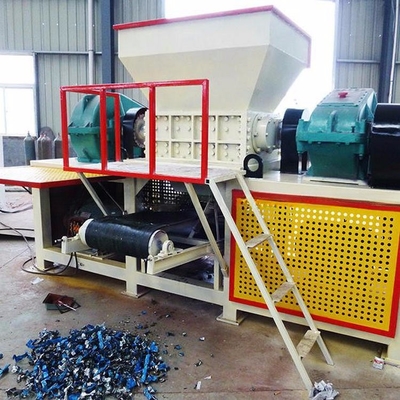

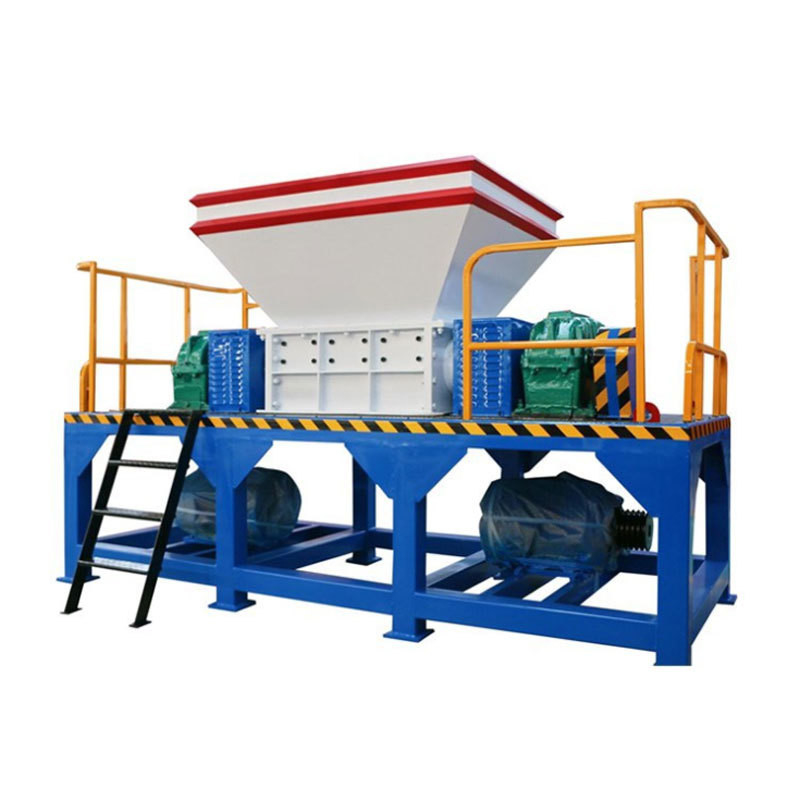

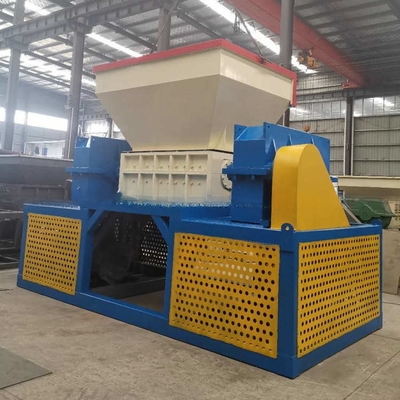

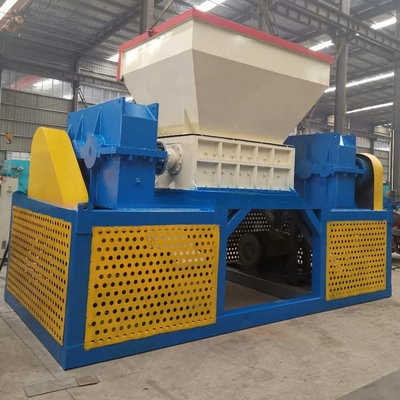

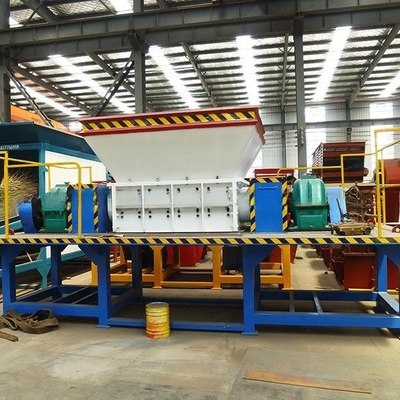

Shredder Machine for Shredding Wood Automobile Plastic Tires and Old Household Appliances
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $50,000.00/sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel box, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 41 Set/Sets per Month metal shredder |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2021 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Voltage: | 220V/380V/420V | Power: | 7.5-132KW |
| Dimension(L*W*H): | According To Different Types | Warranty: | 12 Months |
| Key Selling Points: | Long Service Life | Applicable Industries: | Energy & Mining |
| Showroom Location: | None | Weight (KG): | 2500 |
| Product Name: | Shredder For Shredding Wood, Automobile, Plastic Tires | Keyword: | Shredder Machine |
| Name: | Metal Shredder | Application: | Car, Truck, Tire, Waste Metal, Steel |
| Main Spare Parts: | Knives | Outlet Size: | 5-15cm |
| Knives Material: | 9 Crsi | Application 2: | Rubber Tire,tin Plate, Household Appliances, Bicycles, Empty Cans |
| Application 3: | Recycle Waste Metal | After Warranty Service: | Field Maintenance And Repair Service |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
Shredder for shredding wood, automobile, plastic tires and old household appliances
Mobile rotary stump shredder plant is our own design and development patent product .It is very popular in the market because of the multi-blades rotor,rotary feeding hopper,diesel engine and hydraulic motor driven shredding mobile plant , the non-central feeding structure with the Frequency conversion rotating bin will be easy to shred the stump,tree root, tree branch, and some wooden plate or wood chips,Sheet scraps,small diameter wood,easy to crush the large size wood or biomass materials ,especially large size waste furniture. The whole plant is made up of tire chassis,power unit,hydraulic unit,electricity system,conveying system.Basing on the requirement, the mobile trommel will be matched to make a crushing and screening line to separate the biomass product into different size pile.
Benefit and feature of mobile stump crushing plant
1. Advanced technology,the non-central feeding mode and the pulling rod on the inner wall of bin are favorable to feed.
2. Rotary bin is frequency conversion controlled, once the rotor can’t crush the wood materials, it will oppositely rotate in order to prevent jamming.
3. Multi-Blade rotor will make the crush action high efficiency and completely , the best blade materials , the unique design and assembly will let the blade serving life longer and save the manufacture cost.
Technical parameters
| Mode Para Item | Bottom Dia(mm) | Capacity (t/h) | Blade Qt. | Power (HP) | Weight (t) | Dimension (m) |
| MPB4000 | 1600 | 10-20 | 4 | 150 | 15.6 | 7.5*2.8*2.95 |
| MPB5000 | 1800 | 15-30 | 4-6 | 220 | 18.8 | 7.5*3.0*3.25 |
| MPB7000 | 2350 | 25-45 | 4-6 | 300 | 20.8 | 7.5*3.6*3.55 |
