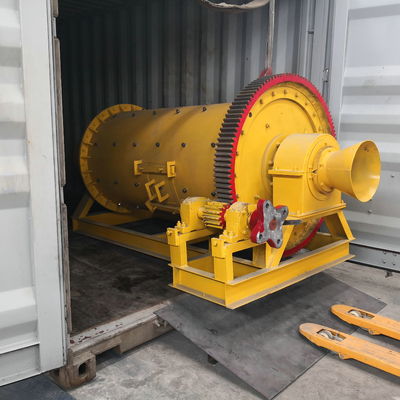

Diesel Engine or Motor Driven Wet Ball Mill for Gold Ore Grinding at Affordable
Product Details:
Place of Origin: | China |
Brand Name: | Sinolion |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $2,686.00/sets >=1 sets |
Detail Information |
|||
Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | Peru, Kyrgyzstan |
---|---|---|---|
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | New Product 2021 | Warranty Of Core Components: | 1 Year |
Core Components: | PLC, Bearing, Motor | Condition: | New |
Type: | Ball Mill | Motor Type: | AC Motor |
Capacity(t/h): | 0.5-83t/h | Dimension(L*W*H): | Depend On Models |
Weight: | KG | Warranty: | 1 Year |
Application: | Gold Iron Copper, Quartz Limestone, Clinker, Cement, Chrom, Chromite | Grinding Way: | Wet, Dry Or Batch Type |
Operation: | Automatic Or Manual | Driving Type: | Diesel Engine Or Motor |
Liner: | High Manganese, Rubber, Ceramic(as Client Request) | After-sales Service: | Engineers Available Service Overseas |
Brand: | Sinolion | Color: | Customizable |
Quality: | Excellent |
Product Description

Big discount Energy-saving ball mill manufacturer
Energy-saving ball mill is an efficiency tool for grinding many materials into fine powder, mine, is widely used in building material, and chemical industry. There are two ways of grinding: the dry way and the wet way.
Energy-saving ball mill structure, and make ball mill shell and underframe be integrated together. It can be placed on building foundation directly one-off in installation. Main shaft adopts double centripital spherical rolling bearings, which can lower energy consumption 30%. The discharge type changed from original lattice force discharging into overflow control discharging, which can improve grinding size, and increase capacity 15-20%.
Main technical parameter of energy-saving ball mill
Model | Cylinder rotating (r/min) | Grinding media loading (t) | Feed size (mm) | Discharge size (mm) | Capacity (t/h) | Powder (kw) | Weight (t) |
Φ900x1800 | 38 | 1.5 | ≤ 20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
Φ900*3000 | 38 | 2.51 | ≤ 20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
Φ1200*2400 | 32 | 3.8 | ≤ 25 | 0.075-0.6 | 1.5-4.8 | 30-45 | 12.5 |
Φ1200*3000 | 32 | 5 | ≤ 25 | 0.074-0.4 | 1.6-5 | 30-45 | 12.8 |
Φ1200*4500 | 32 | 7 | ≤ 25 | 0.074-0.4 | 1.6-5.5 | 55 | 13.8 |
Φ1500*3000 | 27 | 8 | ≤ 25 | 0.074-0.4 | 2-5.8 | 75-90 | 17 |
Φ1500*4500 | 27 | 14 | ≤ 25 | 0.074-0.4 | 3-6.5 | 90-110 | 21 |
Φ1500*5700 | 27 | 15 | ≤ 25 | 0.074-0.4 | 3.5-8 | 110-132 | 24.7 |
Φ1830*3000 | 24 | 11 | ≤ 25 | 0.074-0.4 | 4-10 | 132-180 | 28 |
Φ1830*6400 | 24 | 23 | ≤ 25 | 0.074-0.4 | 6.5-10 | 210 | 34 |
Φ1830*7000 | 24 | 25 | ≤ 25 | 0.074-0.4 | 7.5-17 | 210-245 | 36 |
Φ2200*5500 | 21 | 30 | ≤ 25 | 0.074-0.4 | 10-22 | 370 | 48 |
Φ2200*6500 | 21 | 31 | ≤ 25 | 0.074-0.4 | 14-26 | 380 | 50 |
Φ2200*7500 | 21 | 33 | ≤ 25 | 0.074-0.4 | 15-29 | 475 | 56 |
Φ2400*7000 | 21 | 39 | ≤ 25 | 0.074-0.4 | 16-33 | 475 | 69 |
Φ2400*11000 | 21 | 51.5 | ≤ 25 | 0.04-0.08 | 16-35 | 630 | 99 |
Φ2700*3600 | 21 | 39 | ≤ 25 | 0.074-0.4 | 16-29 | 475 | 74 |
Φ2700*4500 | 21 | 43.5 | ≤ 25 | 0.074-0.4 | 20-35 | 500 | 80 |









Main features of Energy-saving ball mill
1) Energy-saving ball mill is an efficient tool for grinding many materials into fine powder.
2) The Energy-saving ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Energy-saving ball millis widely used in mining industry, building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Energy-saving ball mill can be divided into tabular type and flowing type according to different expelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, and powder various chemicals.

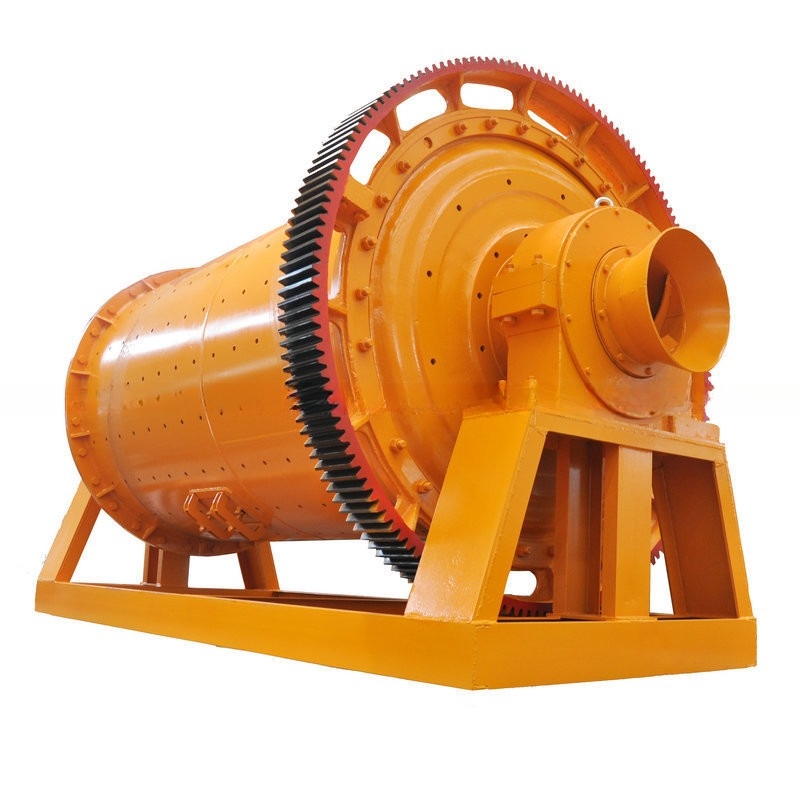

The Energy-saving ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.






1. Pre-sale service:
1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm Energy-saving ball mill details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.

Packaging of Energy-saving ball mill | ||
Size | Depend on models | |
Weight | Depend on models | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
